- Smart Soil Sensor for Smart Farming Management System
arrow_back_iosSearch
All Solutions
Application(s):
Smart Soil Sensor for Smart Farming Management System
ID: AGRT003Off-The-ShelfSystem
Supplier: AgriTalk
Location: Hsinchu, Taiwan
Combining 10 sensors, including three 3-in-1 soil sensors for temperature, humidity, and electrical conductivity, and one pH soil sensor, and a control box, the smart farming kit can help farmers comprehend the soil situation better and effortlessly.
Sensors: Temp(-40°C ~ 80°C), Humidity(0% ~ 100% RH), pH, EC
Wired Communication: RS485
Power: AC, DC
Gateway: No gateway
Control Software: Web-based
Software Features: Dashboard, Account management, Analytics, API
Cloud Compliance: AWS, Azure, Alibaba , Hicloud
Location: Outdoor
Price starts from:US$ 10,000.00/pcs
1 Piece+:
US$ 10,000.00
for Off-The-Shelf solution
Application(s):
Description
Specification
Terms
Supplier Info

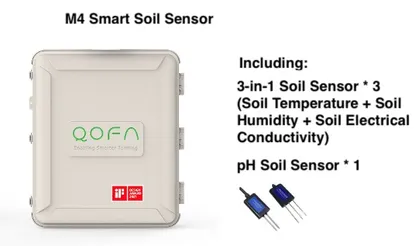

Combining a total of 10 sensors, including three 3-in-1 soil sensors for temperature, humidity, and electrical conductivity, and one pH soil sensor, the M4 Smart Soil Sensor can help farmers comprehend the soil situation better and effortlessly.
Connected with the Internet and different relays, the control box can support farm managers to remotely control the connected equipment and systems, adjusting based on the data collected by the M4 Smart Sensor. For example, farmers can use it to control the pumps for irrigation, the fans for ventilation, the sprays for soil fertilization, etc.
Range of Sensors:
Soil pH: pH 4 ~ 10
Soil Temperature: -40°C ~ 80°C
Soil Humidity: 0% ~ 100% RH
Soil Electrical Conductivity: 0 ~ 10000 µs/cm
Features:
- Offering farming information with high degree of stability and precision for farm managers
- IPX5 Waterproof making it applicable for both outdoor and greenhouse farming
- Collecting soil data that are crucial to the growth of crops, including: soil pH, soil temperature, soil humidity, and soil electrical conductivity
- Industrial-grade design
- Automatic detection of fault and correction on field
- Eliminating the effort to change batteries
- Transmission of data per 15 seconds
- Reaction time < 0.2 seconds, with instructions sent from distance > 30 kilometers
- Easy-to-access online dashboard on communication devices, such as PCs, tablets, and smartphones, that enables farm managers to:
-
i. observe the real-time soil factors
-
ii. remotely control the equipment or systems - manually or automatically with pre-set timing/data patterns collected by sensors
-
iii. analyze the data collected by sensors with visualized statistical charts/tables using traceable parameters
Hardware Specifications
- Sensors: Temp(-40°C ~ 80°C), Humidity(0% ~ 100% RH), pH, EC
- Wireless:
- Wired Communication: RS485
- Power: AC, DC
- Controlled Unit:
- Gateway: No gateway
Software Specifications
- Control Software: Web-based
- Software Features: Dashboard, Account management, Analytics, API
Cloud Compliance
AWS, Azure, Alibaba , Hicloud
Enclosure
- Location: Outdoor
- Ingress Protection: Waterproof(IPX5), Dustproof
Unit Price
- 1 pcs: 10000 USD/pcs
AgriTalk
AgriTalk Tech Inc is an agricultural technology startup developed and spin-off from The TRUST-U Program under the Ministry of Science and Technology. The core team is comprised of the alumni, teachers and students from National Yang Ming Chiao Tung University. Among them, the company’s technical members are interdisciplinary combined with information communication technology and biotechnology to develop non-toxic agricultural technology products and services.
