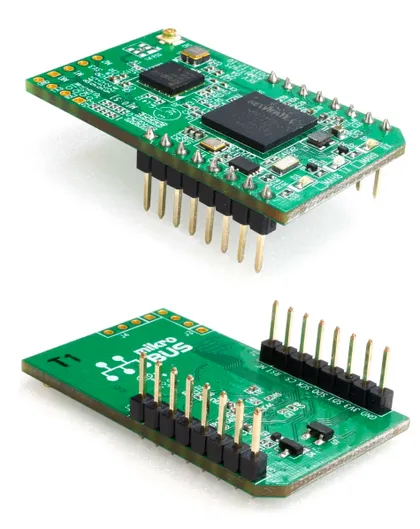

802.11ah WiFi HaLow™ module with mikroBUS™
ID: AIFN001Off-The-ShelfModule
Supplier: Alfa Network
Location: Taipei, Taiwan
It allows building long-range, ultra-low power wifi networks in sub 1GHz, license-exempt bands, and connectivity for many applications, with support for standalone and host-based modes, up to 15Mbps data throughput and complete SDK.
Module Size: 25.4 mm (L) x 42.9 mm (W)
MCU: newracom NRC7292
Wireless: WIFI(HaLow™ - 802.11ah)
Interface: UART, SPI, I2C
Transmission: 150 dBm_TX x 15 dBm_Peak
Price starts from:US$ 65.00/pcs
1 Piece+:
US$ 65.00
for Off-The-Shelf solution
Application(s):
Description
Specification
Terms
Supplier Info
A Long-range, low power Wi-Fi® for IoT
It allows building long-range, ultra-low power WiFi networks in sub 1 GHz, license-exempt bands. It enables connectivity for many applications, including sensors and wearables. With support for standalone and host-based modes, up to 15 Mbps data throughput, and complete SDK, getting started with this new WiFi standard will be straightforward.
Advantages of using WiFi CERTIFIED HaLow™
1. Offer longer range and lower power connectivity
2. Enable the low power connectivity necessary for applications, including sensor networks and wearables.
3. Its range is longer than other IoT technology and provides a more robust connection
4. Multi-vendor interoperability and easy setup without disrupting existing WiFi networks
Key features
1. NewracomTM NRC7292 WiFi HaLowTM SOC (IEEE 802. 11ah draft 8.0 compliant)
2. QorvoTM RFFM6901 front-end
3. IPEX/U.FL antenna connector
4. mikroBUSTM M-size form factor
5. Connectors for UART and mode select
6. 3 x LED
<tr class="TableRow SCXW787</
|
Specification: |
|
|
Chipset |
Newracom™ NRC7292 |
|
Frequency |
847 MHz (TW) 866 MHz (EU) 915 MHz (US) 922 MHz (KR) 924 MHz (JP) |
|
Modulation |
OFDM with BPSK, QPSK, 16QAM, 64QAM |
|
Data rate |
150 Kbps ~ 15 Mbps |
|
Channel bandwidth |
1/2/4 MHz |
|
Antenna connector |
1x IPEX/U.FL |
|
Interfaces |
SPI, UART, I2C |
|
Form factor |
mikroBUS(TM) M-size |
Module Specifications
- Module Package Type:
- Module Size: 25.4 mm (L) x 42.9 mm (W)
- MCU: newracom NRC7292
- Wireless: WIFI(HaLow™ - 802.11ah)
- Interface: UART, SPI, I2C
- Transmission: 150 dBm_TX x 15 dBm_Peak
- Consumption:
- Power Supply:
Unit Price
- 1 pcs: 65 USD/pcs
