nuvoton m483kidae

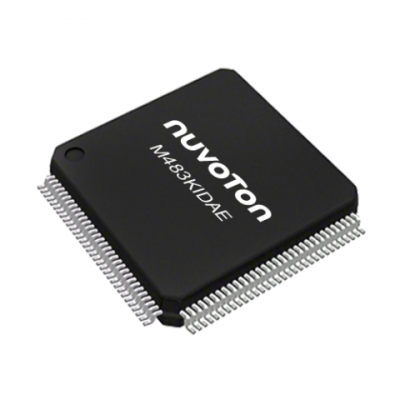

M483KIDAE

Cortex M4 MCU 512 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M483 CAN Series
Core Processor
Cortex M4
Frequency
192MHz
PWM
24*16-bit
Number of I/O
100
Operating Voltage
1.8~3.6V
Memory Size
512KB
Operating Temperature
-40~+105˚C
SRAM
160KB
PDMA
16
DAC
2*12-bit
ADC
16*12-bit
UART
6
SPI
5
CAN
2
USB OTG
FS+HS
Package
LQFP128(14x14mm)
Description

Introduction:
The NuMicro® M483 CAN series is a line of high-performance, low-power microcontrollers engineered by Nuvoton and powered by the Arm® Cortex®-M4F core with DSP extension. Amongst this series, the product `M483KIDAE` stands out due to its efficient operation up to 192 MHz with a dynamic low power consumption of 175 uA/ MHz.

Function and Applications:
The `M483KIDAE` has been designed for optimal functionality across varied usage scenarios. It boasts 512 KB dual bank Flash memory and embedded 160 KB SRAM, which help expedite SPI Flash code execution. The device supports OTA (Over-The-Air) firmware upgrades and includes a factory pre-loaded bootloader for Secure Boot functionality. With built-in Secure Protection ROM and One-Time Programmable ROM, it ensures data security and efficient product life-cycle management. Its versatile interfaces make it ideal for IoT applications and Industrial Control systems.

Performance Parameters:
The `M483KIDAE` microcontroller operates with an Arm® Cortex®-M4F core that delivers 1.25 DMIPS per MHz, reaching up to 192 MHz. It supports memory configurations that includes 512 KB zero-wait state Flash memory and 160 KB SRAM. The device also features an embedded 32 KB cache, a 4 KB Secure Protection ROM and a 2 KB One-Time-Programmable ROM.

Package Types, Interface & Pin Configuration:
The `M483KIDAE` is available in package type LQFP128 and boasts a range of versatile interfaces including two sets each of CAN 2.0B interface and USB 2.0 interface, and up to nine sets of UART interface. It likewise includes multiple SPI, I2C, and USCI interfaces.

Reliability & Lifespan:
The device is designed for optimal durability and longevity even under harsh conditions. It operates at voltages between 1.8V and 3.6V and can withstand an industrial temperature range from -40 ℃ to 105 ℃. The integration of secure boot functionality, Secure Protection ROM and One-Time-Programmable ROM further accentuates its reliability while enhancing its lifespan.

Standards & Certifications:
As with all products within the NuMicro® M483 CAN series, `M483KIDAE` is engineered in line with the stringent industry standards and requirements. While specific certifications may vary by region and application, users can expect the highest quality and performance from this device.

Application Cases & Reference Designs:
The `M483KIDAE` microcontroller excels in a wide array of application scenarios and this versatility is a testament to its design. Some of the most common applications encompass IoT and Industrial Control systems. With its digital and analog interfaces, as well as advanced connectivity solutions, the device can be easily integrated into various types of embedded system designs. While specific reference designs can vary depending on the application, the `M483KIDAE` remains a highly reliable component in a multitude of innovative design architectures.

Packaging *

In Stock: 180

MOQ: 1 / MPQ: 1

Total USD 3.14
QuantityUnit Price
1USD 3.14000
1,000USD 2.84000
2,000USD 2.74000
5,000 +Quote by quantity
