M484KIDAE

Introduction:

The product M484KIDAE, from the category M484 USB HS OTG Series, is a high performance, low power microcontroller manufactured by Nuvoton Technology Corporation. The heart of this microcontroller is the Arm® Cortex®-M4F core with DSP extension which enables it run up to 192 MHz with a dynamic low power consumption of 175 uA/ MHz.

Function & Applications:

The microcontroller M484KIDAE has two main functions; serving as a processing unit and storage. The microcontroller is capable of delivering 1.25 DMIPS per MHz. It accommodates functions such as USB Adapter, and USB Sensor Hub with its 512 KB zero-wait state Flash memory, 160 KB RAM and 4 KB Secure Protection ROM. This makes it suitable for various applications in the industrial space.

Performance Parameters:

Performance parameters are what defines a product. The M484KIDAE operates on a voltage range of 1.8V to 3.6V and is designed to withstand temperatures from -40 ℃ to 105 ℃. It supports ‚Over-The-Air (OTA)‚the firmware upgrade and is equipped with 2 sets of USB 2.0 interfaces with op-chip full speed and high speed OTG PHY. Additionally, other features like the 12-bit, up to 16-ch 5MSPS SAR ADC, four 32-bit timers and the 12-bit, 1 MSPS DAC enhance its overall performance.

Package Types, Interface & Pin Configuration:

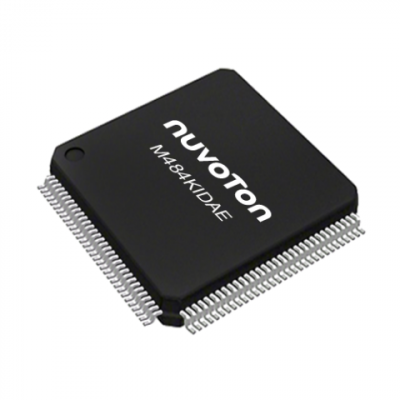

The M484KIDAE comes in a LQFP128 package type, and features up to 6 low power UART interfaces, three I2C interfaces, and a SPI Flash interface supports quad mode. It also has two Secure Digital Host Controllers.

Reliability & Lifespan:

The M484KIDAE is structured with a factory pre-loaded bootloader that offers Secure Boot functionality for optimal reliability. This feature provides a code integrity check in the embedded Flash memory. There is also a built-in Secure Protection ROM, providing a safe space for saving confidential program or data. Indeed, the One-Time Programmable ROM is included, ensuring product longevity by managing the product life-cycle meticulously.

Standards & Certifications:

The M484KIDAE microcontroller meets the necessary industry standards and certifications. However, detailed information regarding specific standards and certifications would need to be obtained directly from the manufacturer.

Application Cases & Reference Designs:

The M484KIDAE's target applications include USB Adapter and USB Sensor Hub. More information about application cases and reference designs would need to be obtained directly from the manufacturer.
