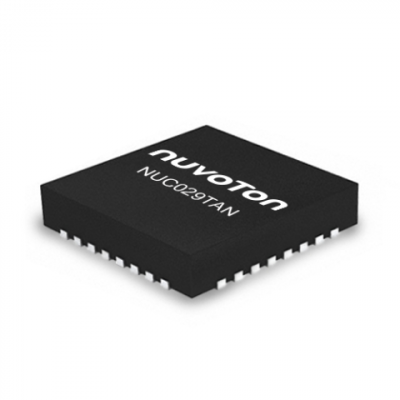

nuvoton nuc029tan

NUC029TAN

Cortex M0 MCU 32 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
NUC029 Series
Core Processor
Cortex M0
Frequency
50MHz
PWM
5*16-bit
Number of I/O
24
Operating Voltage
2.5~5.5V
Memory Size
32KB
Operating Temperature
-40~+85˚C
SRAM
4KB
ADC
5*12-bit
UART
2
SPI
1
Package
QFN32(4x4mm)
Description

Introduction

The Nuvoton® NuMicro® NUC029TAN is a state-of-the-art 32-bit microcontroller tailored for various industrial and control applications that demand a range of communication interfaces. Designed to operate effectively under a broad spectrum of conditions, the NUC029TAN runs on a highly reliable Arm® Cortex®-M0 core and is part of the comprehensive NUC029 series optimized for robust immunity and strong anti-interference capability.

Function & Applications

This versatile microcontroller bridges the gap between industrial and consumer needs. With its wealth of communication options and system-level peripheral functions, it's proficient at managing tasks including LED control, motor control, and broader industrial control systems. The easy integration of the device with a multitude of peripherals makes it ideal for smart home applications, BLDC motors, and various consumer products.

Performance Parameters

The NUC029TAN boasts a maximum frequency of 50 MHz, a voltage range between 2.5V and 5.5V, and an operational temperature range from -40 ℃ to +85 ℃. It includes 32 KB of Flash memory for programs, along with 4 KB of SRAM and ISP ROM each for efficient data management. The device supports various programming protocols including ISP, ICP, and IAP. On the analog front, it offers up to 5 channels of 12-bit resolution ADC with up to 760
Package Types, Interface & Pin Configuration

Housed in a QFN33 package measuring just 4x4mm, the NUC029TAN provides a compact solution without sacrificing functionality. This microcontroller includes connectivity options such as up to 1 SPI, up to 2 I²C, and up to 2 UART interfaces, alongside a versatile 16/8-bit EBI interface, catering to a wide range of industrial application needs.

Reliability & Lifespan

Nuvoton's commitment to reliability is evident in the stringent immunity specifications of the NUC029 series, with ESD resistance up to HBM 8 kV and EFT immunity hitting 4.4 kV. The NUC029TAN is built to last and perform consistently across a significant temperature range and voltage conditions, ensuring a long and reliable operational lifespan.

Standards & Certifications

While specific certifications are not listed, Nuvoton complies with industry standards to meet a high level of quality and reliability. Users are advised to consult Nuvoton's documentation and customer support for detailed information on standards and certifications applicable to the NUC029TAN.

Application Cases & Reference Designs

Due to its comprehensive feature set and high adaptability, the NUC029TAN can serve in a wide array of scenarios from LED control systems, which often require precise PWM capabilities, to more complex industrial control systems that benefit from the device's robust ADC and communication interfaces. Reference designs from Nuvoton and its community can accelerate development and integration into various applications, ensuring a quicker time-to-market for products utilizing the NUC029TAN microcontroller.

Packaging *

In Stock: 480

MOQ: 1 / MPQ: 1

Total USD 1.30
QuantityUnit Price
1USD 1.30000
100USD 1.00000
500USD 0.83000
1,000USD 0.75000
2,000USD 0.73000
5,000 +Quote by quantity
Technical Documentation
