NuMaker-MS51PC

Board Introduction

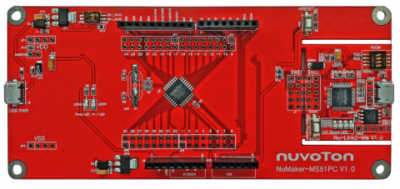

The NuMaker-MS51PC development board consists of two parts, a MS51PC0AE platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-MS51PC allows users to quickly develop and easily program and debug application.

The NuMaker-MS51PC offers MS51PC0AE full pins extension connectors, Arduino UNO compatible extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-MS51PC also provides an ammeter connector, allowing user to monitor the microcontroller’s power consumption during development.

The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. The on-board 16 Mbit SPI Flash allows it able to off-line program the target microcontroller. Additionally, the Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on PC.

Board Features

•NuMicro® MS51PC0AE used as main microcontroller with function downward compatible with:

-MS51EC0AE
-MS51FC0AE
-MS51TC0AE
-ML51XC0AE
•MS51PC0AE full pins extension connectors.
•Arduino UNO compatible extension connectors.
•Ammeter connector for measuring the microcontroller’s power consumption.
•Fixable board power supply

-External VDD power connector
-Arduino UNO compatible extension connector Vin
-USB power connector on M031platform
-ICE USB connector on Nu-Link2-Me
•On-board Nu-Link2-Me debugger and programmer

-Debug through SWD interface
-On-line /off-line programming
-Virtual COM port function
