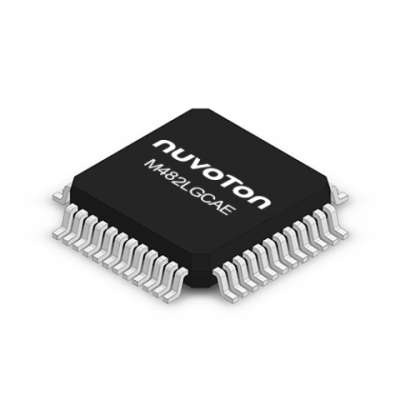

M482LGCAE

Introduction

The NuMicro® M482 USB FS OTG series is a high-performance, low-power microcontroller designed by Nuvoton. Powered by the advanced ARM® Cortex®-M4F core with DSP extension, it is equipped for high power performance. As it operates at high speeds of up to 192MHz, it ensures low dynamic power consumption, making it highly energy-efficient.

Function & Applications

Designed as a robust microcontroller with a broad range of functionalities, the M482 USB FS OTG series is ideal for several applications, including Gaming Accessories and PC Accessories.

Performance Parameters

The M482 USB FS OTG series operates at an impressive speed of up to 192MHz while maintaining low dynamic power consumption of 130 uA/ MHz. This series is equipped with a host of features, including 256KB of zero-wait state flash memory that supports up to 4 configurable eXecute-Only-Memory regions, 128KB of embedded SRAM, a Cyclic Redundancy Calculation Unit, a 16-channel Peripheral DMA Controller, an LCD parallel interface (i80 mode), multiple clocks, timers & PWM, and advanced connectivity with USB 2.0.

Package Types, Interface & Pin Configuration

The M482 USB FS OTG series comes in the package of LQFP48, providing a variety of options to cater to a broad range of consumer needs. The microcontroller features high-speed USB interfaces with on-chip OTG PHY, making it adaptable for numerous applications.

Reliability & Lifespan

The M482 series is developed to operate over a range of temperatures from -40℃ to 105℃, and at a voltage range of 1.8V to 3.6V, emphatically underlining its reliability under various working conditions. With features like secure boot functionality, one-time programmable ROM, and various communication interfaces, the M482 series showcases a long lifespan with high performance maintained throughout.

Standards & Certifications

The M482 series complies with IEC-60730 Class B compliance, ensuring its credibility and safety of use in the industry. The presence of a true random number generator and AES-256 cryptography accelerator guarantees that the microcontroller adheres to the highest security standards.

Application Cases & Reference Designs

While the M482 series is versatile across various applications, it highlights in areas where power efficiency and high speeds are of prime concern. Be it Gaming Accessories, PC Accessories, this series exhibits outstanding efficiency, power, and durability, making it an ideal choice for developers and consumers alike.
