The development board of NuMicro M032 series

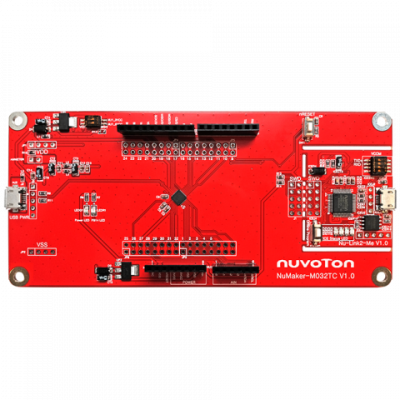

The NuMaker-M032TC is a development board for Nuvoton NuMicro® M032TC microcontrollers. The NuMaker-M032TC consists of two parts: an M032 platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M032TC is designed for project evaluation, prototype development and validation with power consumption monitoring function.
The M032 platform is based on NuMicro® M032TC1AE. For the development flexibility, the M032 platform provides the extension connectors of M032TC1AE, the Arduino UNO compatible headers and able to adopt multiple power supply. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.
In addition to the M032 platform, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the development board and becoming a stand-alone mass production programmer.
