nuvoton m031sg6ae

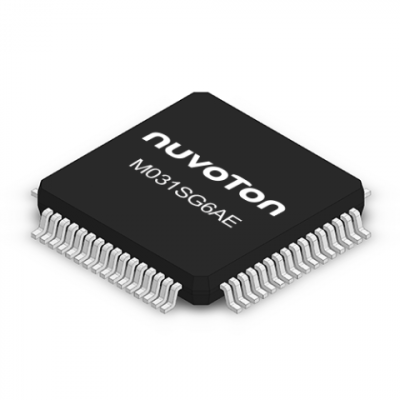

M031SG6AE

Cortex M0 MCU

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M031 Series
Core Processor
Cortex M0
Frequency
72MHz
PWM
24*16-bit
Number of I/O
55
Operating Voltage
1.8~3.6V
Memory Size
256KB
Operating Temperature
-40~+105˚C
SRAM
32KB
PDMA
7
ADC
16*12-bit
UART
6
SPI
2
Package
LQFP64
Description

Introduction

The NuMicro® M031SG6AE developed by Nuvoton is a low-voltage operation microcontroller based on Arm® Cortex®-M0 core furnished with 32-bit hardware multiplier/divider. It is designed to function at a frequency of up to 72 MHz within an operating voltage range of 1.8V to 3.6V.

Function & Applications

The M031SG6AE is developed to address the needs of applications that need a 1.8V low-voltage interface. Its design includes a fast 2 MSPS ADC, a 144 MHz PWM, a 24 MHz SPI, and a 7.2 MHz UART. With these features, it ensures quick and precise data conversion for voltage, current, and sensor data with swift response control to external devices. The microcontroller is suitable for various industry and consumer applications such as Laser Distance Meter, Air Detector/Cleaner, Mobile LCD Panel Controller, Micro Printer and WPC Wireless Charger.

Performance Parameters

The microcontroller operates within a temperature range of -40℃ to +105℃. It is made robust with an EFT level of 4.4 kV and an ESD HBM level of 5 kV. It offers a 256 KB Flash, 32 KB SRAM, and 4 KB Flash for the user program loader. The microcontroller's clock features include an internal 48 MHz HIRC oscillator with variation± 2% within the full temperature range and a PLL that can go up to 144 MHz.

Package Types, Interface & Pin Configuration

The M031SG6AE comes in LQFP64 7 x 7 mm package. It includes two sets of USCI interfaces that supports UART , SPI and I2C mode. Moreover, it is equipped with six sets of 7.2 MHz UART, one set of Q SPI interface, one set of 24 MHz SPI /I2S interface, two sets of 1 MHz I2C interface and one External Bus Interface (EBI).

Reliability & Lifespan

Powered with an internal 48 MHz HIRC oscillator, the microcontroller is designed to operate reliably within all temperature ranges. It exhibits a robust resilience to electrostatic discharge with an ESD HBM level of 5 kV.

Standards & Certifications

The M031SG6AE aligns with the standard requirements of IEC60730 for electronic controls within household applications. Additionally, it features CRC-CCITT, CRC-8, CRC-16 and CRC-32 generators and checkers for communication systems.

Application Cases & Reference Designs

The M031SG6AE finds application in several areas including Laser Distance Meters, where its quick response controls and effective data conversions make it a reliable microcontroller. In Mobile LCD Panel Controllers and Micro Printers, it is used for its speed and precision. Furthermore, it is attractive to other applications such as Air Detectors/Cleaners and WPC Wireless Chargers due to its robust features and reliable performance.

Packaging *

In Stock: 100

MOQ: 1 / MPQ: 1

Total USD 2.60
QuantityUnit Price
1USD 2.60000
100USD 2.00000
500USD 1.66000
1,000USD 1.51000
2,000USD 1.46000
5,000 +Quote by quantity
