nuvoton nau83p20ygb

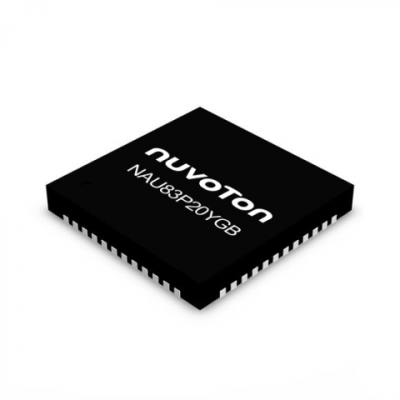

NAU83P20YGB

mono Class-D audio

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Package
QFN48(7X7)
Operating Voltage
4.5~24V
Operating Temperature
-40~+85˚C
SNR(dB)
105
Description

NAU83P20YGB is a Class-D audio power stage that features single supply, 20W, high efficiency, for driving Stereo bridge-tied speakers. Operating from a single VDD 8V-24V supply, the design includes under-voltage, over-current and over-temperature detection.
Target Applications:
• LCD TV
• TV sound bar
• Automotive Stereo System
• Portable Media Boombox
• Home entertainment system
Key Features:
• Audio Input
- 2 channel PWM Signal Input

• Audio Output
- Class D power 2 x 20W into 8Ohms (10% THD)
- Power efficiency Typ.@90%
- SNR Typ.@105dB
- Supports multiple output configurations
• 2-CH Bridged outputs (20W x 2)
• 4-CH single ended outputs (10W x 4)
• 2-CH single ended + 1-CH bridged (10W x 2 + 20W x 1)

• Advance Feature
- Over-Temperature Detection
- Under-Voltage Detection
- Over-Current Detection

• Operating Characteristics
- Voltage range: 4.5 V to 24 V
- Temperature range: -40°C to 85°C

• Package
- QFN-48 (7x7mm)

Packaging *

In Stock: 45

MOQ: 1 / MPQ: 1

Total USD 1.31
QuantityUnit Price
1USD 1.31000
100USD 1.01000
500USD 0.84000
1,000USD 0.76000
2,000USD 0.74000
5,000 +Quote by quantity
