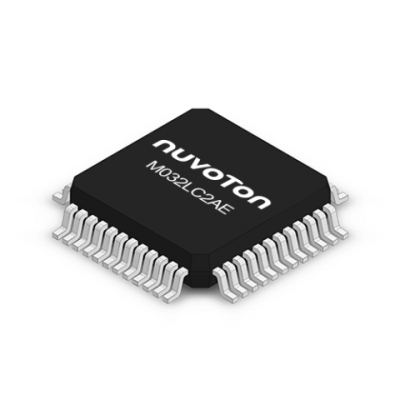

nuvoton m032lc2ae

M032LC2AE

Cortex M0 MCU

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M032 Series
Core Processor
Cortex M0
Frequency
48MHz
PWM
12*16-bit
Number of I/O
38
Operating Voltage
1.8~3.6V
Memory Size
32KB
Operating Temperature
-40~+105˚C
SRAM
8KB
PDMA
5
ADC
12*12-bit
UART
1
SPI
2
USB Device
Y
Package
LQFP48
Description

Introduction & Function & Applications

The Nuvoton NuMicro® M032 series, which includes the product M032LC2AE, essentially offers a robust collection of 32-bit microcontrollers, integrating the technological sophistication of the Arm® Cortex®-M0 CPU upgraded with a 32-bit hardware multiplier/divider. These microcontrollers facilitate smooth operation at 1.8V ~ 3.6V voltage, exhibiting 5V I/O tolerance and achieving operational speeds up to 48/72 MHz within a broad temperature spectrum of - 40~105 ℃.

Specially designed to cater to Crystal-less USB applications seeking 1.8V low-voltage interface connections, the M032 series is enhanced with a 12-bit ADC boasting a high-speed 2 MSPS conversion rate, comparators, and an impressive 24-ch 96/144 MHz PWM control. It is optimized for swift and accurate data conversion catering to voltage, current, and sensor parameters and prompt control response to external entities. Among other various peripherals, the M032 series also comprises the Universal Serial Control Interface (USCI), which can comfortably alternate between UART/SPI/I2C, making it suitable for versatile data communication between master and slave devices. The series can be deployed in a wide array of applications, including Mobile LCD Panel Controllers (HMI), IoT Sensing Devices, Micro Printers, Gaming Keyboards, Mice, and TWS Chargers.

Performance Parameters

These microcontrollers come powered with a Flash size ranging between 32 KB to 512 KB along with an SRAM size from 4 KB to 96 KB. They also house an enhanced crystal-less USB 2.0 full-speed device feature, which makes them significantly beneficial for various USB-related applications.

Package Types, Interface & Pin Configuration

As for the packaging, the supported form factors is LQFP48 with pin-compatibility spanning multiple part numbers for convenient system design and easy part replacements.

Reliability & Lifespan

Balancing the Extreme Field Transient (EFT) and Electrostatic Discharge (ESD) Human Body Model (HBM) at 4.4kV and 6kV respectively, the M032 series offers robust reliability over a wide temperature range from -40℃ to 105℃.

Standards & Certifications

From a standards and certification standpoint, these controllers support IEC60730 safety specifications, thus ensuring the reliability and safety of the devices over their lifespan.

Application Cases & Reference Designs

The devices in the M032 series have seen broad applicability, with use cases extending from gaming keyboards and LED controllers to smart locks, and water purifiers to home appliances, among others. Reference designs are available through the NuMaker evaluation boards and the Nuvoton Nu-Link debugger. Moreover, the series allows the support for third-party IDEs such as Keil MDK, IAR EWARM, and Eclippse IDE with GNU GCC compilers.

Conclusively, Nuvoton's M032 series microcontrollers provide a blend of performance, packaging versatility, enhanced communication interfaces, robust standards and certifications, and wide-ranging applicabilities, offering an efficient solution to cater to a myriad of deployment scenarios.

Packaging *

In Stock: 225

MOQ: 1 / MPQ: 1

Total USD 0.90
QuantityUnit Price
1USD 0.90000
100USD 0.69000
500USD 0.58000
1,000USD 0.52000
2,000USD 0.50000
5,000 +Quote by quantity
Technical Documentation
