nuvoton m032ld2ae

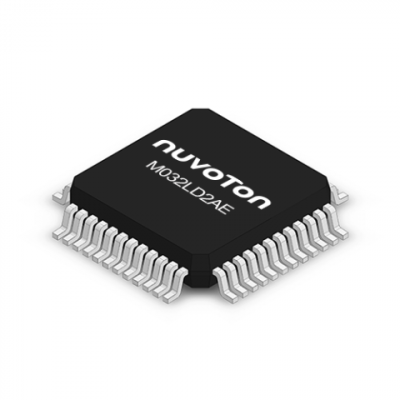

M032LD2AE

Cortex M0 MCU

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M032 Series
Core Processor
Cortex M0
Frequency
48MHz
PWM
12*16-bit
Number of I/O
38
Operating Voltage
1.8~3.6V
Memory Size
64KB
Operating Temperature
-40~+105˚C
SRAM
8KB
PDMA
5
ADC
12*12-bit
UART
1
SPI
2
USB Device
Y
Package
LQFP48
Description

Introduction
The NuMicro® M032 series microcontrollers from Nuvoton, powered by the Arm® Cortex®-M0 core, offer a viable and comprehensive solution for Crystal-less USB applications. The M032LD2AE microcontroller, a part of this series, is specifically designed to play a crucial role in a variety of applications while ensuring a stable and reliable performance even under challenging conditions.

Features, Functions and Applications
The M032LD2AE microcontroller leverages a 32-bit hardware multiplier/divider and sustains a speed of 48/72 MHz. It offers a flexible voltage operation ranging between 1.8V and 3.6V, along with a temperature tolerance bracket of -40℃ to 105℃. This feature-packed solution entrusts an array of applications including Gaming keyboards, LED controllers, Smart locks, Water purifiers, and home appliances.

Performance Parameters
Supporting a seamless interface with a 2 MSPS ADC rate, the M032LD2AE promises fast and accurate data conversion, leading to efficient response control to external devices - a feature vital for gaming applications. Moreover, it possesses a high-speed communication interface with a 24 MHz SPI for prompt sensor device communication, alongside a 6 MHz UART catering to encrypted communication needs. Its vast performance requisites extend to include 5-ch PDMA, two sets of Universal Serial Control Interface, one set UART, one set SPI/I2S, one set Qual SPI, and 12-ch 12-bit 2 MSPS ADCs.

Package Types, Interface & Pin Configuration
The M032LD2AE microcontroller comes under the small form factor - LQFP48 (7 x 7 mm). The 32-bit microcontroller possesses the potential to provide a 1.8V low-voltage interface connection and interface with an array of devices through UART, SPI, and I2C.

Reliability & Lifespan
The Microcontroller boosts reliability with its design supporting EFT 4.4 kV and ESD HBM 6 kV. It also integrates features like Power-on Reset, Brown-out Detect and Low Voltage Reset contributing to its overall stable and efficient operation. It operates under diverse conditions, providing longevity and robust performance.

Standards & Certifications
The M032 series microcontrollers are embedded with support for IEC60730 safety specifications, ensuring their premium quality and standard adherence.

Application Cases & Reference Designs
The M032 series find extensive use in a large array of applications like Mobile LCD Panel Controllers, IoT Sensing Devices, Micro Printers, Gaming Keyboards and Mouse, and TWS Chargers. Being part of this prolific series, the M032LD2AE microcontroller exhibits similar adaptability and efficiency. The reference designs such as gaming keyboard application highlight the product's potential and versatility for nuanced use-cases.

Packaging *

In Stock: 205

MOQ: 1 / MPQ: 1

Total USD 0.95
QuantityUnit Price
1USD 0.95000
100USD 0.73000
500USD 0.61000
1,000USD 0.55000
2,000USD 0.53000
5,000 +Quote by quantity
Technical Documentation
