nuvoton m032sg6ae
SALE

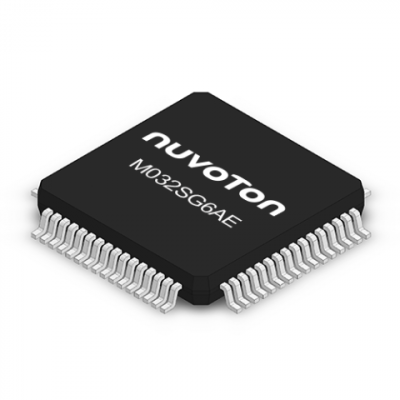

M032SG6AE

Cortex M0 MCU

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M032 Series
Core Processor
Cortex M0
Frequency
72MHz
PWM
24*16-bit
Number of I/O
51
Operating Voltage
1.8~3.6V
Memory Size
256KB
Operating Temperature
-40~+105˚C
SRAM
32KB
PDMA
7
ADC
16*12-bit
UART
6
SPI
2
USB Device
Y
Package
LQFP64
Description

Introduction:
The NuMicro M032 series by Nuvoton is a line of 32-bit microcontrollers featuring the Arm Cortex-M0 CPU with a hardware multiplier and divider. The product 'M032SG6AE' is a key offering of this series. It operates at a voltage of 1.8V to 3.6V, within a temperature range of -40℃ to 105℃ and at a frequency of up to 48/72 MHz. The M032SG6AE is designed to provide a low-voltage interface connectivity, offering a fast and precise data conversion rate needed for accurate voltage, current, and other sensory data.

Functions & Applications:
The M032SG6AE microcontroller is ideal for applications that necessitate the handling of high-speed data such as industrial control and consumer applications. This includes any equipment from Mobile LCD Panel Controllers, Micro Printers, Air Detectors/Cleaners to IoT sensing devices, Gaming Keyboards, and Mouse, among others. The USCI feature allows UART/SPI/I2C flexibility, and a 1-wire UART interface allows effective communication between master and slave devices.

Performance Parameters:
Operating at 72 MHz with 1.8V to 3.6V operating voltage, the M032SG6AE is well-equipped with rich features including a 2 MSPS 12-bit ADC, a 144 MHz PWM, a 24 MHz SPI and a 7.2 MHz UART. Additionally, it comes with 256 KB Flash and 32 KB SRAM for storing data.

Package Types, Interface & Pin Configuration:
The M032SG6AE is available in a 7mm x7mm LQFP64 package type. In terms of interface, it offers up to 2 sets of USCI and 6 sets of 7.2 MHz UART interfaces, with pin-to-pin compatibility across the same package for the entire series, allowing for simplified system design and replacements.

Reliability & Lifespan:
With robust operation specifications including a large temperature range (-40℃ ~ +105℃), ESD HBM 5 kV, and EFT 4.4 kV, the M032SG6AE showcases high reliability and impressive lifespan.

Standards & Certifications:
The M032SG6AE adheres to specific safety specifications as per IEC60730 standards. This demonstrates the product's compliance with universal safety expectations, making it a reliable choice for various applications.

Application Cases & Reference Designs:
The M032SG6AE has seen successful adoption in applications such as Laser Distance Meters, WPC Wireless Chargers, IoT Sensing Devices, Micro Printers, and Mobile LCD Panel Controllers. Given its diverse set of features and high reliability, the M032SG6AE serves as a promising component in a range of industrial and consumer-based design cases.

Packaging *

In Stock: 195

MOQ: 1 / MPQ: 1

Total USD 2.18
Up to 21% Off
QuantityUnit Price
1(USD 2.73000)USD 2.18000
100(USD 2.09000)USD 1.67000
500(USD 1.74000)USD 1.39000
1,000(USD 1.58000)USD 1.26000
2,000USD 1.53000
5,000 +Quote by quantity
