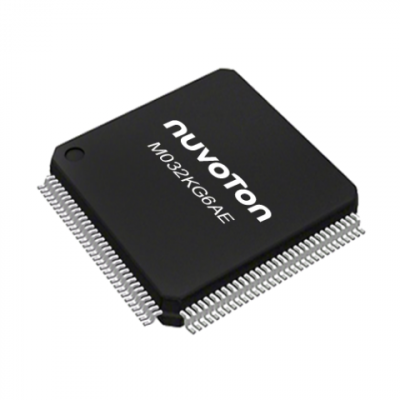

M032KG6AE

Introduction

The NuMicro® M032KG6AE is a state-of-the-art piece of technology under the M032 Series developed by Nuvoton. This 32-bit microcontroller is solidly grounded on the Arm® Cortex®-M0 core, which flaunts a 32-bit hardware multiplier/divider and operates seamlessly within a temperature range of -40℃ ~105℃. The uniqueness of the M032KG6AE lies in the fact it supports a 1.8V low-voltage interface connection with an enhanced rapid 2 MSPS conversion rate 12-bit ADC, comparators, and an up-to 24-ch 96/144 MHz PWM control.

Function & Applications

Primarily, the NuMicro® M032KG6AE is designed for applications requiring rapid and precise data conversion for voltage, current, and sensor data, with fast response control to the external device. This feature makes it an ideal choice for various application such as a Laser Distance Meter, Air Detector/Cleaner, Mobile LCD Panel Controller, IoT Sensing Device, HMI Controller, Micro Printer, Gaming Keyboard and Mouse, and more.

Performance Parameters

This microcontroller features a 1.8~3.6 V operating voltage span, is 5 V I/O tolerant, and achieves an operating speed of up to 48/72 MHz. It has a Flash size from 32 KB to 512 KB, a SRAM size from 4 KB to 96 KB and runs in temperature range of - 40 ℃ ~ +105 ℃. It includes a hardware multiplier/divider, power-on reset, brown-out detect, and low voltage reset.

Package Types, Interface & Pin Configuration

The M032KG6AE offers the package types of LQFP128. It boasts of robust communication interfaces including Universal Serial Control Interface, which can interchangeably be set as UART/SPI/I2C for master and slave data communication.

Reliability & Lifespan

The M032KG6AE is built to function excellently within a voltage range of 1.8V to 3.6V and a temperature range of - 40 ℃ ~ +105 ℃, testifying to its impressive durability and ability to perform under diverse conditions. EFT 4.4 kV and ESD HBM 6 kV enhance the microcontroller's reliability while ensuring its robustness and longevity.

Standards & Certifications

The microcontroller adheres to IEC60730 standards, demonstrating its conformance to globally recognized safety and performance standards.

Application Cases & Reference Designs

With its top-notch performance and extensive support for peripherals, the M032KG6AE is ideally suited for industrial control and various consumer applications such as Mobile LCD Panel Controller, IoT Sensing Devices, Micro Printers, Gaming Keyboards and Mice, TWS Chargers, etc. Its enhanced data conversion and control features enable it to provide fast and precise control for sensors and feedback devices in these applications.
