The development board of NuMicro M031 series

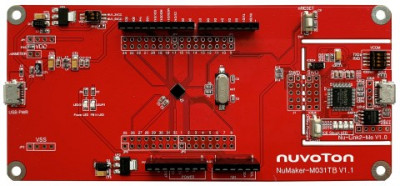

The NuMaker-M031TB development board consists of two parts, a M031TB0AE platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M031TB allows users to quickly develop and easily program and debug application.
The NuMaker-M031TB offers M031TB0AE full pins extension connectors, Arduino UNO compatible extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-M031TB also provides an ammeter connector, allowing user to monitor the microcontroller’s power consumption during development.
The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. The on-board 16 Mbit SPI Flash allows it able to off-line program the target microcontroller. Additionally, the Nu-Link2-Me provides virtual COM port ( VCOM ) function to print out messages on PC. Nu-Link2-Me can be separated from NuMaker-M031TB, allowing user to use as a mass production programming tool.
•NuMicro® M031TB0AE used as main microcontroller with function downward compatible with:
•M031TB0AE full pins extension connectors
•Arduino UNO compatible extension connectors
•Ammeter connector for measuring the microcontroller’s power consumption
•Fixable board power supply
-External VDD power connector
-Arduino UNO compatible extension connector Vin
-USB power connector on M031platform
-ICE USB connector on Nu-Link2-Me
•On-board Nu-Link2-Me debugger and programmer:
-Debug through SWD interface
-On-line / off-line programming
-Virtual COM port function
