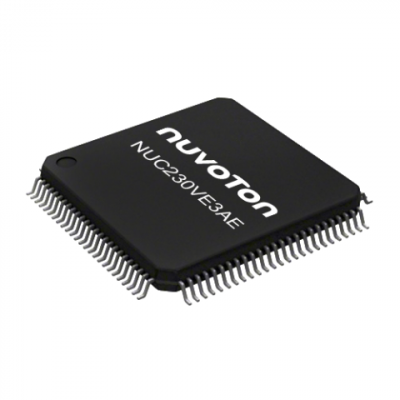

nuvoton nuc230ve3ae

NUC230VE3AE

Cortex M0 MCU 128 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
NUC130/230 CAN Series
Core Processor
Cortex M0
Frequency
72MHz
PWM
8*16-bit
Number of I/O
83
Operating Voltage
2.5~5.5V
Memory Size
128KB
Operating Temperature
-40~+105˚C
SRAM
16KB
PDMA
9
ADC
8*12-bit
UART
6
SPI
4
CAN
2
Package
LQFP100
Description

Introduction

The NuMicro® NUC230VE3AE belongs to the NUC230 CAN Line developed by Nuvoton. It is a microcontroller embedded with the ARM® Cortex™-M0 core, designed for industrial and rich communication applications. This 32-bit microcontroller offers performance of a robust magnitude within the cost boundaries of a traditional 8-bit MCU. The product operates at 2.5V ~ 5.5V and - 40 ℃ ~ 105 ℃, providing a high accuracy 22.1184 MHz internal oscillator, Bosch CAN 2.0A/B, along with many peripheral devices and interfaces.

Functions & Applications

The NUC230VE3AE microcontroller comes with useful key features including a Cortex-M0 processor, operating at a maximum frequency of 72 MHz, a temperature range of -40 ℃ ~ 105 ℃, and a memory suite encompassing 128 KB of flash memory, 16 KB of SRAM and a configurable Data Flash. Its versatile functions make it perfectly suited to applications such as Automotive, Security/Alarm, Temperature Sensor, and Communication Systems.

Performance Parameters

The NUC230VE3AE exhibits high-performance parameters, including up to 8 channels ADC with 12-bit resolution, PWM with up to 8-channel or 4 complementary paired outputs, and various connectivity features such as Bosch CANs 2.0A/B, SPIs, I2C s, UARTs, and ISO-7816-3 interfaces for secure applications.

Package Types, Interface & Pin Configuration

The package types of the NUC230VE3AE is LQFP100. This wide package selection further enhances its suitability to an array of industrial applications. It also benefits from multiple interfaces which bolster its ability to facilitate communication between different components or systems.

Reliability & Lifespan

The microcontroller is acclaimed for its high reliability and robustness over a wide temperature range and operating voltage, supported by a high immunity feature to resist 8 kV ESD/4 kV EFT, ensuring an extended lifespan.

Standards & Certifications

The NUC230VE3AE complies with global standards that guarantee quality, safety, and efficiency. These standards include the ISO-7816-3 interfaces for security applications.

Application Cases & Reference Designs

With its versatile applications such as in the automotive industry, security and alarm systems, temperature sensors, and communication systems, the NUC230VE3AE is used across a wide range of industries where it reliably executes its reference designs, delivering robust and efficient results.

Packaging *

In Stock: 270

MOQ: 1 / MPQ: 1

Total USD 3.88
QuantityUnit Price
1USD 3.88000
100USD 2.98000
500USD 2.48000
1,000USD 2.25000
2,000USD 2.17000
5,000 +Quote by quantity
Technical Documentation
