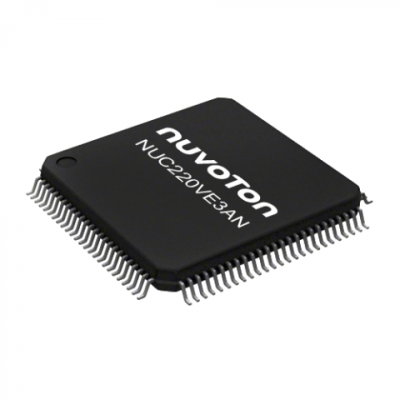

nuvoton nuc220ve3an

NUC220VE3AN

Cortex M0 MCU 128 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
NUC120/122/123/220 USB Series
Core Processor
Cortex M0
Frequency
50MHz
PWM
8*16-bit
Number of I/O
76
Operating Voltage
2.5~5.5V
Memory Size
128KB
Operating Temperature
-40~+85˚C
SRAM
16KB
PDMA
9
ADC
8*12-bit
UART
3
SPI
4
USB Device
1
Package
LQFP100
Description

Introduction:
The NuMicro NUC220 VE3AN from Nuvoton Technology, a subunit of the NUC200 USB series, is an advanced industrial-grade 32-bit microcontroller. Rooted in the powerful ARM Cortex-M0 core processor, these microcontrollers provide an astoundingly cost-effective and robust solution for industrial control and applications requiring rich communication interfaces. The NUC220 VE3AN product offers compelling features and performance parameters, paralleling the efficacy of traditional 8-bit MCUs.

Functions & Applications:
The NuMicro NUC220 VE3AN has been designed to operate within a wide range of voltages and temperatures (2.5V ~ 5.5V and -40 ℃ ~ 85 ℃), supporting a multitude of applications including consumer, security/alarm, temperature sensors, and communication systems. Moreover, the microcontroller offers an array of rich peripheral devices such as Timers, RTC, I2S, and more, proving its versatility in various operational setups. Connectivity is also greatly enhanced by the inclusion of USB 2.0 full-speed function, numerous SPIs and UARTs, and ISO-7816-3 interfaces for security applications, attesting to its wide-ranging functional capabilities.

Performance Parameters:
The NUC220 VE3AN runs at a maximum frequency of 50MHz utilizing the Cortex-M0 core processor, providing a high-performance solution within its market space. It features 128KB of flash memory, 16KB of SRAM and is equipped with In-System Programming (ISP), In-Circuit Programming (ICP), and In-Application Programming (IAP). Furthermore, the built-in 12-bit resolution ADC supports up to 8 channels delivering rapid conversions up to 760 kSPS. The PWM can generate up to eight channels, and it facilitates Period/duty trigger ADC functions.

Package Types, Interface & Pin Configuration:
The NUC220 VE3AN is available in the package type of LQFP100. The chip design incorporates various interfaces, including UART, SPI, I2C, I2S, and PWM Timer, among others. For more detailed pin configuration, users should refer to the specific pinout diagram included within the product datasheet.

Reliability & Lifespan:
Equipped with a high immunity to electrical interferences (8kV ESD, 4kV EFT), the microcontrollers offer a high degree of reliability even in challenging electromagnetic environments. Each unit's lifespan is determined by numerous factors including operating conditions and utilisation, but the high-quality materials and state-of-the-art ARM core ensure optimal longevity.

Standards & Certifications:
The NUC220 VE3AN adheres to prevailing industry standards. It is recommended users verify the detailed standards and certifications as per their specific applications.

Application Cases & Reference Designs:
The extensive application of the NUC220 VE3AN microcontrollers spans, but are not limited to, designs within the consumer, electronics, security/alarm systems, temperature sensors, and communication systems. Manufacturers often provide reference designs which prospective users can refer to as a basis for their novel applications.

Packaging *

In Stock: 306

MOQ: 1 / MPQ: 1

Total USD 2.88
QuantityUnit Price
1USD 2.88000
100USD 2.21000
500USD 1.84000
1,000USD 1.67000
2,000USD 1.61000
5,000 +Quote by quantity
Technical Documentation
