nuvoton m453lg6ae

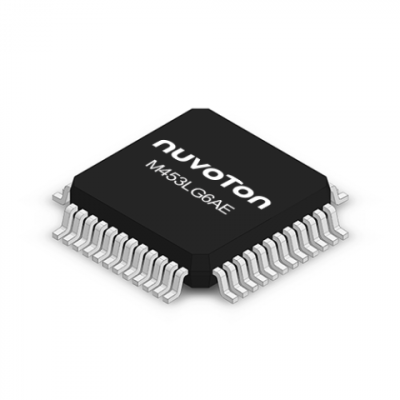

M453LG6AE

Cortex M4 MCU 256 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M453 CAN Series
Core Processor
Cortex M4
Frequency
72MHz
PWM
10*16-bit
Number of I/O
34
Operating Voltage
2.5~5.5V
Memory Size
256KB
Operating Temperature
-40~+105˚C
SRAM
32KB
PDMA
12
DAC
1*12-bit
ADC
8*12-bit, Vref
UART
4
SPI
3
CAN
Y
USB OTG
FS
Package
LQFP48
Description

Introduction

The NuMicro® M453 CAN series 32-bit microcontroller (MCU) is a product of the highly reputed Nuvoton company. It is a versatile semiconductor solution equipped with the powerful ARM® Cortex®-M4 core. The MCU operates under a sizable voltage range of 2.5V to 5.5V and tolerates a substantial temperature range of -40 ℃ to 105 ℃. The NuMicro® M453 CAN MCU series boasts of high immunity, efficient oscillator provisions, and multiple package types.

Function & Applications

The NuMicro® M453 CAN series MCU finds extensive use in a host of applications spanning across various industries. The microcontroller's wide array of features make it an asset in Industrial Automation, Programmable Logic Controllers (PLCs), Home automation systems, Inverters, and Motor Control mechanisms. In addition, its portability and robust design allow it to be a part of Portable Data Collectors and USB Accessories, as well as function as Smart Card Readers.

Performance Parameters

The performance metrics of the NuMicro® M453 CAN series MCU are noteworthy. The core, an ARM® Cortex®-M4 with DSP and FPU, can handle a maximum frequency of 72 MHz. The device is equipped with 256 KB of Flash Memory and 32 KB of SRAM. Another important feature is the configurable Data Flash. Its ADC resolution is 12-bit (with up to 16 channels), DAC resolution is 12-bit, and PWM is 16-bit (with up to 12 channels).

Package Types, Interface & Pin Configuration

The MCU comes in the following package type: LQFP48. Interfaces include USB 2.0 OTG (optional), CAN (optional), up to 4 UARTs, up to three SPIs, and up to two I2Cs with an operational frequency of up to 1 MHz. Also available are smart card interfaces (optional) and up to two I2S interfaces.

Reliability & Lifespan

The NuMicro® M453 CAN series MCU offers high reliability by ensuring high immunity (8 kV ESD, 4 kV EFT), which fortifies it against electrical disturbances. These embedded protective measures undoubtedly extend the lifespan of the product, ensuring longevity and sustained performance.

Standards & Certifications

The acclaim of the product can be attributed to the high industry standards it adheres to, as well as the important certifications it has achieved (specific certifications may vary as it depends on regulatory bodies and geographical market).

Application Cases & Reference Designs

The provided general application categories align with the product's portfolio, indicating its broad compatibility and suitability for industries such as Industrial Automation and Home Automation, among others. However, specific application cases and reference designs are typically tailored according to customer requirements—those are provided on request by the manufacturer or supplier.

Packaging *

Out of stock

MOQ: 1 / MPQ: 1

QuantityUnit Price
1USD 2.58000
1,000USD 2.33000
2,000USD 2.25000
5,000 +Quote by quantity
Technical Documentation
