NuMaker-M471R1

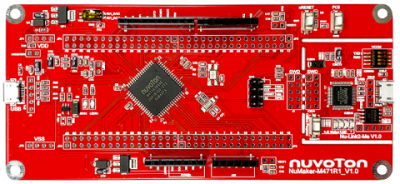

The NuMaker-M471R1 is an evaluation board for Nuvoton NuMicro M471R1, M471MD, and M471SE   microcontrollers. The NuMaker-M471R1 consists of two parts: an M471R1  target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M471R1 is designed for project  evaluation, prototype development and validation with power consumption monitoring function.

The M471R1 target board is based on NuMicro M471R1D6AE. For the development flexibility, the M471R1 target board provides the extension connectors, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.
