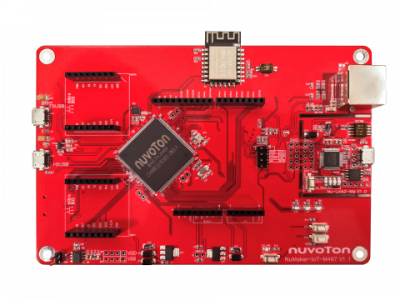

NuMaker-IoT-M467

IoT development board of NuMicro M467 Ethernet/Crypto series with 1024 KB embedded Flash. This board offers the following features:

• •Wifi module
• •Ethernet 10/100
• •CAN FD
• •32 Mbit SPI Flash Memory
• •USB 2.0 HS Host/Device/OTG
• •USB 2.0 FS Host/Device/OTG
• •SD Card Slot
• •mikroBUS interface
• •Thermal sensor (Nuvoton NCT7717U)
• •6-Axis sensor

NuMicro® M467HJHAN used as main microcontroller with function downward compatible with:

-M467SJHAN
-M467KJHAN
-M467JJHAN

Arduino UNO compatible extension connectors

Ammeter connector for measuring the microcontroller’s power consumption

Fixable board power supply:

-External VDD power connector
-Arduino UNO compatible extension connector Vin
-USB FS connector on M467 target board
-USB HS connector on M467 target board
-ICE USB connector on Nu-Link2-Me

On-board Nu-Link2-Me debugger and programmer:

-Debug through SWD interface
-On-line /off-line programming
-Virtual COM port function

On-board components:
-32 Mbits SPI Flash
-Thermal sensor (Nuvoton NCT7717U)
-User defined LEDs and buttons
-10/100M Ethernet PHY
-USB HS OTG and USB FS OTG
-Micro SD Card slot
-CAN FD transceiver
-Wi-Fi module (ESP-12F)
-mikroBUSTM interface
-6-Axis sensor (MPU6500)
