nuvoton m451msd3ae

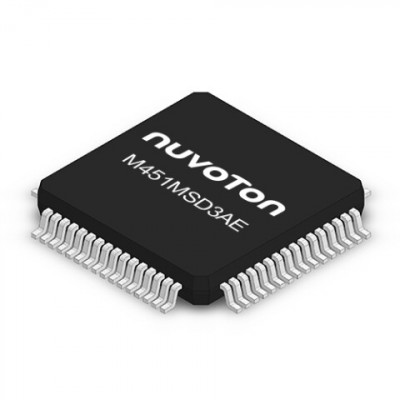

M451MSD3AE

Cortex M4 MCU 72 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M451M Series
Core Processor
Cortex M4
Frequency
72MHz
PWM
12*16-bit
Number of I/O
55
Operating Voltage
2.5~5.5V
Memory Size
72KB
Operating Temperature
-40~105˚C
SRAM
16KB
DAC
1*12-bit
ADC
13*12-bit,Vref
UART
5
SPI
2
Package
LQFP64
Description



The NuMicro® M451M series 32-bit microcontroller ( MCU ) is embedded with the ARM® Cortex®-M4 core and operating at 2.5V ~ 5.5V and - 40 ℃ ~ 105 ℃ , and provides 22.1184 MHz internal oscillator ( 1 % accuracy at 25 ℃ , 5V ) , Data Flash configurable and high immunity ( 8 kV ESD, 4 kV EFT ) . Package types include LQFP48 and LQFP64.

Target Application:

Industrial Automation, PLCs, Inverters, Home Automation, Portable Data Collector, Smart Card Reader, Motor Control, etc.

Key Features:

•Core

-ARM® Cortex®-M4 with DSP and FPU

-Max frequency of 72 MHz

-Operating voltage: 2.5V to 5.5V

-Temperature range: - 40 ℃ ~ 105 ℃

•Memory

-72 KB of Flash Memory

-16 KB of SRAM

-Data Flash configurable

•12-bit ADC ( up to 13 channels )

•12-bit DAC

•16-bit PWM ( up to 12 channels )

•Timers

-Four timers

•Connectivity

-Up to 5 UART s

-Up to 2 SPI s

-Up to 2 I²Cs ( up to 1 MHz )

-Smart card interfaces ( optional )

-I²S interfaces

•Security

-CRC engine

•Clock Control

-4 to 24 MHz external crystal oscillator

-32.768 kHz crystal oscillator

-22.1184 MHz internal RC oscillator

-10 kHz internal RC oscillator

Packaging *

Out of stock

MOQ: 1 / MPQ: 1

QuantityUnit Price
1USD 1.74000
1,000USD 1.58000
2,000USD 1.53000
5,000 +Quote by quantity
