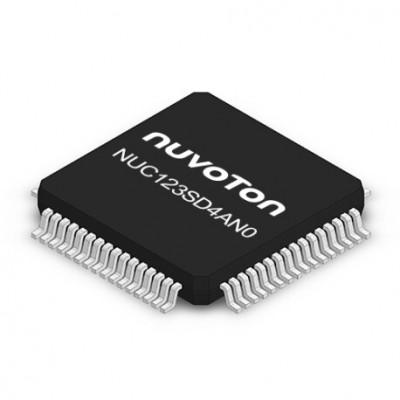

NUC123SD4AN0

The NuMicro™ NUC123 series embedded with  the ARM® Cortex™-M0 core runs up to 72 MHz with 36K / 68K bytes Flash  program memory, 12K/20K bytes SRAM , and 4K bytes Flash loader memory for In System Program ( ISP ) . The NUC123 series also integrates Timers, Watchdog Timer ( WDT ) , Window Watchdog Timer ( WWDT ) , PDMA with C RC calculation unit, UART , SPI , I²C , I²S, PWM Timer, GPIO, PS/2, USB 2.0 FS Device, 10-bit ADC , Low Voltage Reset Controller and Brown-out Detector.

Target Application:

Consumer Electronic, USB Keyboard, Touch System, etc.

Key Features:

•Core

-Cortex™-M0 processor

-Max frequency of 72 MHz

-Operating voltage: 2.5V to 5.5V

-Temperature range: - 40 ℃ ~ 85 ℃


•Memory

-68 KB of flash memory

-20 KB of SRAM

-Configurable Data Flash

-ISP ( In-System Programming )

-ICP ( In-Circuit Programming )

-IAP ( In-Application Programming )


•PWM

-Up to 4-channel PWM or 2 complementary paired PWM outputs

-Period/duty trigger ADC function


•Connectivity

-One USB 2.0 full speed device

-Up to three SPI s ( up to 32 MHz )

-Up to two I²C s ( up to 400 kHz )

-Up to two UART s ( up to 1 Mbps )


•Clock Control

-4 to 24 MHz external crystal oscillator

-22.1184 MHz internal RC oscillator ( ± 1 % accuracy at 25 ℃ , 5V )
