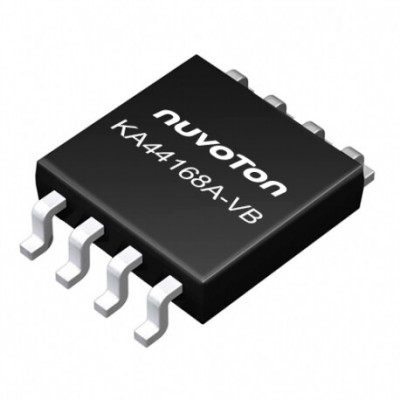

KA44168A-VB(T)

Product Description

KA44168A is a high efficiency single phase motor driver IC with built-in Soft Switching function for low noise operation. The soft switching period is automatically adjusted based on the motor current. This eliminates the need for individual adjustment of the soft switching period based on the motor’s specifications. With a wide input voltage range of 12V/24V, this IC is most suitable for usage in home appliances, office automation and factory automation equipment.

Features

KA44168A is a high efficiency single phase motor driver IC with built-in Soft Switching function for low noise operation. The soft switching period is automatically adjusted based on the motor current. This eliminates the need for individual adjustment of the soft switching period based on the Motor’s specifications.

With a wide input voltage range of 12V/24V, this IC is most suitable for usage in OA and FA equipment.

• Supply voltage range: 5.0V to 28 V
• Auto phase shift correction with built-in Soft Switching function
• Wide range operation (12V/24V)
• Motor lock protection and built-in Auto-recovery fixed with built-in clock
• Output pin for FG pulse (open drain)
• Various protection functions:

         Under Voltage Lock Out (UVLO)

         Thermal protection

         GND short protection

         Over Current Protection

• Package: MSOP 8L (3x3x0.85mm3, Lead Pitch 0.65mm)

Other features:

Auto phase shift correction with built-in Soft Switching function. MSOP stands for Mini Small Outline Package which is useful for small factor electronics and it is standard size which means it is easier for the BGA machine so solder and place.

Specification

Package Info and Pin out

The package type is MSOP8L (Mini Small Outline Package) 3x3mm Body with a Lead_Pitch 0.65mm. It is a small package for the electronic appliances which need small form factor.

Applications

Refrigerator, Projector, Printer, Factory automation. It can be used as a plug and play solution for the motor. It is very useful in applications where you don’t need precise speed control and not high torque. With its cost advantage and the availability, it can be incorporated in new designs with proper available support.

Similar Products

KA44168A is a low cost and direct controller kind where you don’t have to worry about making any changes in the control pin as it automatically adjust itself. If you want to have a plug and play solution for the motor, you can go for KA44168A. If you want to have more control and use PWM from your controller, select one from KA44169, KA44170 and KA44171 as they have PWM control.

Recommend circuit

Note:

The recommended circuit is an example. The operation of the mass production set is not guaranteed. Sufficient evaluation and verification is required in the design of the mass production set. Customer is fully responsible for the incorporation of the above illustrated application circuit in the production.

Application circuit

Note:

The application circuit is an example. The operation of the mass production set is not guaranteed. Sufficient evaluation and verification is required in the design of the mass production set. The Customer is fully responsible for the incorporation of the above illustrated application circuit in the design of the equipment.

Reference Waveform

Condition: VCC = 12 V, PWMI = 100% duty , Cvcc = 1 μF
