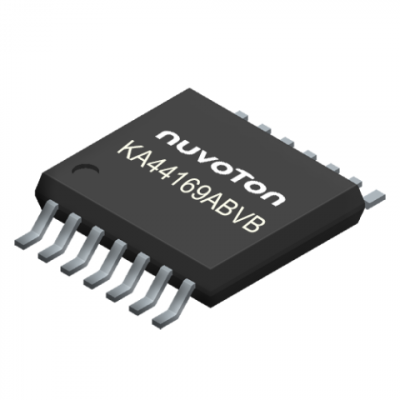

KA44169ABVB(T)

Product Description

KA44169AB is a high efficiency single phase motor driver IC with built in Soft Switching function for low noise operation. The soft switching period is automatically adjusted based on the motor current. This eliminates the need for individual adjustment of the soft switching period based on the Motor’s specifications. It is available in TSSOP 14L package which is having a height of only 0.9mm making it suitable for small form factor appliance and applications. It can work for appliances running on 12V/24V voltage rating and with Ron of 1.6Ohms, it can be very efficient in operating conditions. It comes with a complete set of protections like Under Voltage Lock Out (UVLO), Over Voltage Lock Out (OVLO), Thermal protection and a Current limit Protection. It has input pin that can be connected to DC voltage to control the speed of the motor. There is one mode select pin which can be used to select the startup assist function which allows the motor to start at 50% duty to further increase the efficiency of the operation. It needs a hall element to get the speed of the motor and set the output levels. To control the motor with PWM, it has a Triangle wave capacitor connection pin for PWM duty & frequency.

Features

KA44169AB is a high efficiency single phase motor driver IC with built-in Soft Switching function for low noise operation. Motor speed is controlled by DC input. With a wide input voltage range of 12V/24V, this IC is most suitable for usage in home appliances, office automation and factory automation equipment.

• Supply voltage range: 5.6 V to 28 V
• Auto phase shift correction with built in Soft Switching function
• Wide range operation (12V/24V)
• Speed Control by DC voltage input and PWM input
• Motor lock protection and built in Auto recovery Adjustable by a external capacitor
• Output pin for FG pulse (open drain)
• Driving mode at Start up can be selected with external pin
• Various protection functions:

              Under Voltage Lock Out (UVLO)

              Thermal protection

              GND short protection

              Over Current Protection

• Package: TSSOP 14L (4.4x5.0x0.9mm3, Lead Pitch 0.65mm)

Other features:

         TSSOP 14L

it is a 14 lead package which is TSSOP (Thin Shrink Small Outline Package), it can be easily soldered with basic BGA machine and it is easy to debug as well with better accessibility to the pins to take measurements

          PWM and Linear Voltage Control

It has both PWM and Linear control options making it suitable for microcontroller based applications and manual control as well. It allow better control over the speed of the motor to suit the demands of the operations.

          Under Voltage Lock Out (UVLO),

Thermal protection GND short protection, and Over Current Protection

The protections available in this motor controller make sure that the operations of the motor are always safe and there is no danger to the motor or the equipment.

          Soft Start available

As there is selectable pin so that you can select the soft start for the motor if needed. It will be useful if you further need the efficiency to go up.

Basic Specification

Applications

Refrigerator, Projector, Printer, Factory automation

Application circuit

Note:

The application circuit is an example. The operation of the mass production set is not guaranteed. Sufficient evaluation and verification is required in the design of the mass production set. The Customer is fully responsible for the incorporation of the above illustrated application circuit in the design of the equipment.

Pin Out

Similar Products

As we can decipher from this table, the KA44169AB is one of the cost efficient motor controller and since it has 1.4A max current rating which makes it suitable for the high current operations. If you want to have more control over the operation and the efficiency of the motor then KA44169AB is the correct choice for you. The function generator also allows for the microcontroller to read the speed and position of rotor to give inputs to other systems.

Recommend Circuit

Note:

The recommended circuit is an example. The operation of the mass production set is not guaranteed. Sufficient evaluation and verification is required in the design of the mass production set. Customer is fully responsible for the incorporation of the above illustrated application circuit in the production.

Reference Waveform

Condition: VCC = 12 V, PWMI = 100% duty , Cvcc = 1 μF
