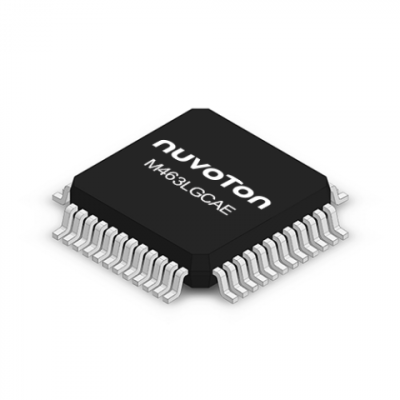

M463LGCAE

The NuMicro® M463LGCAE is a 32-bit microcontroller based on Arm Cortex-M4F core, with DSP instruction set and single-precision floating-point unit (FPU), targeted for IoT gateway, industrial control, telecom, and data center applications. The M463LGCAE runs up to 200 MHz, and features 1.7 V to 3.6 V wide operating voltage, -40 °C to 105 °C wide operating temperature, a variety of package choices, and excellent high immunity characteristics by ESD HBM 2 KV and EFT 4.4 KV.

As the new smart function added on home appliances, the M463LGCAE provides up to 256 KB Flash memory for code storage and 128 KB SRAM for run time operation. Additionally, in response to the code security requirements, the M463LGCAE supports Execute-Only-Memory (XOM) function to protect confidential code information from stealing in the run-time. In order to reduce the data access overhead of CPU core to peripherals, 1 set 16 channels of peripheral direct memory access (PDMA) is provided.

The M463LGCAE supports plenty of peripherals, including hardware crypto engine, key store, true random number generator (TRNG), 2 sets of CAN FD, USB HS OTG, up to 24 channels of 16-bit PWM, 8 sets of UART, 4 sets of SPI/I²S, 2 set of Quad-SPI, 5 sets of I²C, and a real-time clock (RTC).

The M463LGCAE also provides rich analog peripherals including 2 sets of analog comparators, up to 16 channels of 12-bit SAR ADC.

For the development, Nuvoton provides the NuMaker-M463KG evaluation board, and Nuvoton Nu-Link debugger. The 3rd Party IDE such as Keil MDK, IAR EWARM, Eclipse IDE with GNU GCC compilers are also supported.

The NuMicro M463LGCAE is suitable for a wide range of applications such as:

IoT Gateway
Industrial Control
Telecom
Data Center

Features:

•Operating Characteristics
- Voltage range: 1.7 V to 3.6 V
- Temperature range: -40 °C to +105 °C
- EFT 4.4 KV
- ESD HBM 2 KV

• Core
- Up to 200 MHz ARM Cortex-M4F
- DSP instruction set
- Single-precision floating point instructions (FPU)
- Memory Protection Unit (MPU) with eight memory regions

• Memory
- Up to 256 KB Flash memory
- Flash memory supporting up to four regions of Execute-Only-Memory (XOM)
- 8 KB user-defined loader (LDROM)
- 3 KB One-Time-Programmable ROM
- Up to 128 KB SRAM including hardware parity check 64 KB

• External Memory Interface
- External bus interface (EBI), i80 mode

• Clocks
- 4 to 24 MHz crystal oscillator
- 32.768 kHz crystal oscillator for RTC
- Internal 12 MHz RC oscillator
- Internal 10 kHz RC oscillator
- Internal PLL up to 200 MHz


• Power Management
- Active: 135 μA/MHz at 25°C/3.3V (peripheral off)
- Low leakage power-down (LLPD): 80 μA
- Standby power-down (SPD) w/o RAM retention:  0.9 μA
- Deep power-down (DPD): 0.15 μA (RTC off)
- RTC with VBAT supply: 0.5 μA
- Supports wake up from Normal Power-down mode by: RTC, WDT, I²C, Timer, UART, GPIO, EINT, ACMP, SDH, USB HS, and BOD

• Timer & PWM
- Four 32-bit timers
- Up to 12 Enhanced PWM with twelve 16-bit counters
- Up to 12 Basic PWM with two 16-bit counters
- One 24-bit count-down SysTick timer
- One watchdog timer
- One window watchdog timer

• Peripheral Direct Memory Access (PDMA)
- 1 set of PDMA, each with 16 channels
- Channel can be operated by software trigger, UART, SPI, EPWM, TIMER, ADC, DAC, ACMP and I²C

• Analog Peripheral
- 1 set of 12-bit, up to 16-ch, 5 MSPS SAR ADC
- 2 sets of analog comparators
- Built-in internal reference voltage


• Communication Interface
- Up to 8 sets of UART interfaces with IrDA (Support LIN in UART0 and UART1)
- Up to 1 set of ISO-7816-3 interfaces, which support full duplex UART mode
- Up to 5 sets of I²C interfaces with SMBus/PMBus (Up to 3.4 Mbps)
- Up to 4 sets of SPI/I²S interfaces (SPI up to 100 MHz in Master mode)
- Up to 2 set of Quad-SPI interface (Up to 100 MHz in Master mode)
- 2 set of CAN FD interfaces
- 1 set of Secure Digital Host Controllers (Up to 50 MHz)
- Up to 1 set of USCI interfaces
- Up to 1 set of PSIO interfaces
- Support 6x8 Keypad Interface (KPI)
- Up to 2 set of enhanced quadrature encoder interfaces (EQEI)
- Up to 2 set of 24-bit, 3-ch enhanced input capture timer units (ECAP)

• Advanced Connectivity

- USB 2.0 high speed device/host/OTG controller with on-chip PHY

• Cryptography Accelerator

- AES-256

• Pseudo Random Number Generator (PRNG)

• True Random Number Generator (TRNG)

• Key Store

• Secure Boot

• Voltage Adjustable Interface (VAI)

• Cyclic Redundancy Calculation (CRC)

• Real Time Clock (RTC) with Vbat

• Up to 100 I/O pins with interrupt capability

• IEC60730-1 Class B
- Supports certified IEC60730-1 Class B Software Test Library (STL)

• Development Platform Support
- Arm Keil RVMDK and IAR EWARM IDE
- Free GNU compiler with Eclipse IDE support
- ICP (In Circuit Programmer) support for updating internal code via Nu-Link debugger
- ISP (In System Programmer) support for updating code through UART, SPI, I²C, RS-485 peripheral interfaces
- Pin Viewer for real time monitoring the status of all I/O pins
- PinConfigure tool for pin assignment, initial code generation and OrCAD/Protel part generation


• 96-bit Unique ID (UID)

• 128-bit Unique Customer ID (UCID)
