nuvoton m483sgcae

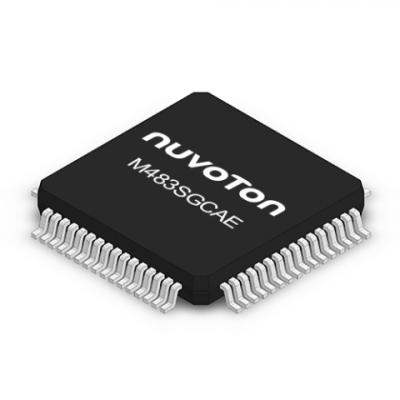

M483SGCAE

Cortex M4 MCU Nuvoton

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M483 CAN Series
Core Processor
Cortex M4
Frequency
192MHz
PWM
24*16-bit
Number of I/O
52
Operating Voltage
1.8~3.6V
Memory Size
256KB
Operating Temperature
-40~+105˚C
SRAM
128KB
PDMA
16
DAC
1*12-bit
ADC
16*12-bit
UART
8
SPI
5
CAN
2
Crypto
AES
USB Device
FS (X-less)
USB OTG
FS
USB Host
FS
Package
LQFP64
Description

The NuMicro® M483 CAN series is a high performance, low power microcontroller powered by the Arm® Cortex®-M4F core with DSP extension. Running up to 192 MHz with 130 µA/ MHz dynamic power consumption provides excellent energy efficiency. The 256 KB embedded Flash memory supports up to 4 configurable eXecute-Only-Memory regions, and the 128 KB embedded SRAM provides multi-level retention in standby power-down mode. The factory pre-loaded bootloader delivers Secure Boot functionality to check code integrity inside embedded Flash memory. One-Time Programmable ROM is also included for product life-cycle management.

The NuMicro® M483 CAN series supports operating voltage from 1.8V to 3.6V , and industrial operating temperature from - 40 ℃ to 105 ℃ . It is integrated with two or three sets of CAN 2.0B interface, dual 12-bit 5 MSPS ADC , camera interface, USB full speed OTG with the crystal-less feature in device mode, and up to eight sets of high-speed UART interface. Package type includes LQFP64 and LQFP128.

Target Application:

Motor Control, Industrial Control, Battery Management System, EV Charging Pile, etc.

Key Features:

•Core

-Up to 192 MHz Arm® Cortex ®-M4F delivering 1.25 DMIPS per MHz

-DSP instruction set

-Memory Protection Unit ( MPU )


•Memory

-256 KB zero-wait state flash supports eXecute-Only-Memory ( XOM )

-128 KB RAM ( with 32 KB hardware parity check )

-2 KB OTP for general purpose


•Cyclic Redundancy Calculation Unit


•16-ch Peripheral DMA Controller


•External Bus Interface

-LCD parallel interface, i80 mode


•Clocks

-4 to 24 MHz crystal oscillator

-32 kHz oscillator for RTC ( variation < ± 0.25 % )

-Internal 48 MHz RC oscillator ( X-less )

-Internal 12 MHz RC oscillator ( variation < ± 2 % )

-Internal 10 kHz RC with calibration


•RTC

-Independent VBAT power pin

-20 bytes of battery-powered backup registers


•Timer & PWM

-Four 32-bit timers

-Twelve Enhanced PWM with twelve 16-bit timers

-Twelve Basic PWM with two 16-bit timers

-One 24-bit count-down SysTick timer

-One watchdog timer

-One window watchdog timer


•Analog

-Two 12-bit, 5 MSPS SAR ADC ( up to 16 channels ) with 0 to analog supply conversion range

-One 12-bit, 1 MSPS DAC

-Two rail-to-rail comparators


•Communication Interfaces

-Up to 8 low power UART interfaces ( 17 Mbps ) , including 2 LIN interfaces

-Up to 1 ISO-7816 interface ( 3.4 MHz ) , supporting full duplex UART mode

-Three I²C interfaces ( Up to 3.4 Mbps )

-Two Quad- SPI interfaces ( Up to 96 MHz )

-Up to 3 SPI /I²S interfaces ( SPI up to 96 MHz , I²S up to 192 kHz/16-bit )

-One I²S interface ( 192 kHz/32-bit )

-Up to 3 CAN 2.0B interfaces

-One Secure Digital Host Controllers ( 50 MHz )


•Control Interfaces

-Two quadrature encoder interfaces ( QEI )

-Two 24-bit, 3-ch input capture timer/counter units



•Camera interface

-CMOS Sensor interface with hardware 1-bit luminance output


•Advanced Connectivity

-USB 2.0 full speed OTG controller with on-chip PHY



•Operating Characteristics

-Voltage range: 1.8V to 3.6V

-Temperature range: - 40 ℃ to 105 ℃



•IEC-60730 Class B compliance


•Cryptography Accelerator

-AES-256

-True random number generator

Packaging *

In Stock: 250

MOQ: 1 / MPQ: 1

Total USD 2.48
QuantityUnit Price
1USD 2.48000
1,000USD 2.25000
2,000USD 2.17000
5,000 +Quote by quantity
