NuMaker-NUC1263SD
An evaluation board for Nuvoton NuMicro NUC126 series
Supplier:
Nuvoton
Certification:

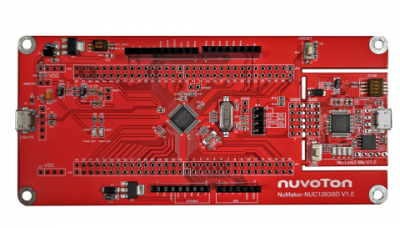

The NuMaker-NUC1263SD is an evaluation board for Nuvoton NuMicro NUC1263SD and NUC1263LD microcontrollers. The NuMaker-NUC1263SD consists of two parts: an NUC1263SD target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-NUC1263SD is designed for project evaluation, prototype development and validation with power consumption monitoring function.
The NUC1263SD target board is based on NuMicro NUC1263SD4CE. For the development flexibility, the NUC1263SD target board provides the extension connectors of NUC1263SD4CE, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.
In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.
l An evaluation board for Nuvoton NuMicro NUC1263LD4CE,NUC1263ND4CE,NUC1263SD4CE and NUC1263ZD4CE microcontrollers. The NuMaker- NUC1263SD is designed for project evaluation, prototype development and validation with power consumption monitoring function.
l IAR or Keil can be download from website Support ICP (In-Circuit Programming)
