M091YD2AE

Introduction

 In the realm of modern electronics, the demand for microcontrollers that can efficiently handle detailed analog data is surging, particularly in sensor-based applications. Rising to this challenge, Nuvoton Technology Corporation's M091YD2AE microcontroller, part of the M091 Series, stands out as a particularly robust choice. This device is engineered specifically to cater to the nuanced requirements of analog sensor applications, boasting a constellation of features that make it uniquely suitable for such roles.

Function & Applications

The M091YD2AE microcontroller shines in its application versatility, especially in dealing with analog signals. This is largely because of its comprehensive analog peripheral support, including 4 sets of 8 MHz GBW operational amplifiers, 4 sets of 12-bit DACs, and 16 channels of 2 MSPS 12-bit SAR ADC. With an embedded temperature sensor delivering remarkable accuracy over a wide temperature range, this microcontroller is an ideal candidate for applications in photoelectric sensors, pressure sensors, and positioning sensors, leveraging its analog handling prowess for precise measurement and control.

Performance Parameters

At its core, the M091YD2AE operates on an Arm Cortex-M0 core, reaching speeds of up to 72 MHz. This is paired with 64 KB of flash memory and 8 KB of SRAM, ensuring ample space for complex programs and swift data handling. Its operating voltage range of 2.7V to 3.6V, combined with 5V I/O tolerance and the ability to function across a temperature range of -40°C to +105°C, illustrates its resilience and adaptability in various operating environments. Noteworthy is its efficient power management, boasting a normal run power consumption of just 246 µA/MHz, and a minimalist 4 mA in power-down mode, with versatile wake-up sources.

Package Types, Interface & Pin Configuration

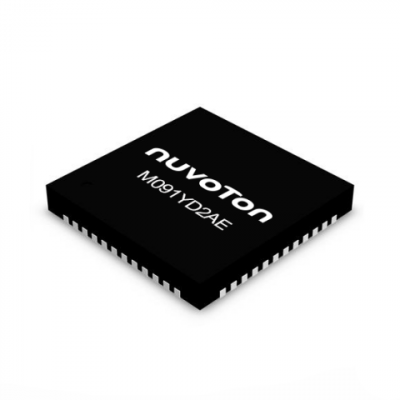

The microcontroller's small form factor is encapsulated in a QFN48 package (5 mm x 5 mm), designed to meet the space constraints of compact PCB designs without compromising on functionality. In terms of interfaces, it is equipped with UART (including RS485 and One-wire mode), SPI, and two sets of I²C interfaces, alongside a generous provision of 29 I/O pins with interrupt capability, ensuring comprehensive connectivity options for a multitude of applications.

Reliability & Lifespan

Dedicated to reliability, the M091YD2AE is built to withstand harsh conditions, testified by its EFT and ESD ratings of 4.4 kV and 4 kV, respectively. While specific lifespan metrics are typically application-dependent, its robust design and stringent manufacturing standards suggest a prolonged operational life.

Standards & Certifications

Complying with industry-standard protocols for electronics, the M091YD2AE supports various data encryption and security standards, including a unique 96-bit and 128-bit ID for protection and authentication purposes. Detailed certifications specific to this microcontroller can be obtained directly from Nuvoton.

Application Cases & Reference Designs

Courtesy of Nuvoton's comprehensive support in terms of development tools, including the NuMaker evaluation board and the Nuvoton Nu-Link debugger, along with compatibility with major IDEs, the M091YD2AE is not just a powerful microcontroller but also an accessible one. Its integration into real-world projects is further facilitated by numerous reference designs and application cases, particularly in the realms of sensor integration, where its analog capabilities can be fully leveraged.

In conclusion, the M091YD2AE microcontroller from Nuvoton's M091 Series represents a significant leap forward in the domain of analog sensor applications. Offering a well-rounded combination of performance, flexibility, and reliability, it stands as a first-rate choice for developers and engineers looking to push the boundaries of what's possible in their next-generation electronic devices.
