nuvoton m433se8ae

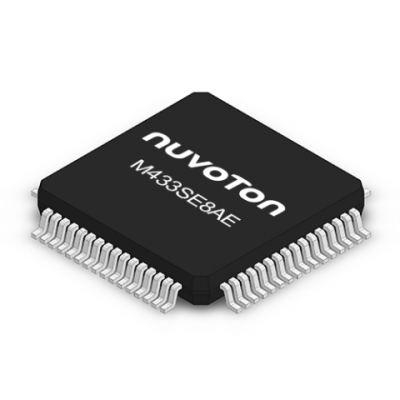

M433SE8AE

Cortex M4 MCU 128 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M433 CAN/USB FS OTG Series
Core Processor
Cortex M4
Frequency
144MHz
PWM
18*16-bit
Number of I/O
52
Operating Voltage
1.8~3.6V
Memory Size
128KB
Operating Temperature
-40~+105˚C
SRAM
64KB
PDMA
9
ADC
16*12-bit
UART
4
SPI
2+1
CAN
2
USB Device
FS (X-less)
USB OTG
FS
USB Host
FS
Package
LQFP64
Description

Introduction
The NuMicro® M433SE8AE microcontroller stands out in the M433 CAN/USB FS OTG Series developed by Nuvoton Technology. This cutting-edge microcontroller is powered by the Arm® Cortex®-M4F core, incorporating DSP instruction capabilities and a single-precision floating-point unit (FPU) extension. With its design focusing on high performance and low power consumption, the M433SE8AE is an optimal choice for various applications, particularly those within the IoT, industrial, and consumer sectors. Running at speeds of up to 144 MHz and boasting a deep power-down mode power consumption of just 350 nA, this microcontroller is designed to offer utmost energy efficiency.

Function & Applications
The NuMicro® M433SE8AE aims to cater to a broad spectrum of applications, prominently in the gaming, industrial, and consumer markets. These applications range from input devices like keyboards and mice to more complex systems such as CAN/USB/UART/SPI conversion boxes and local dimming solutions for the consumer market. Its diverse compatibilities and functionalities make it a versatile choice for developers aiming to innovate in these areas.

Performance Parameters
This microcontroller supports an operating voltage ranging from 1.8V to 3.6V and can function across a wide temperature spectrum from -40°C to 105°C. It is equipped with up to 128 KB Flash memory for code storage and up to 64 KB SRAM for runtime operations. To facilitate minimized CPU core data access overhead to peripherals, it offers a 9-channel peripheral direct memory access (PDMA) set-up. With clock speeds capable of reaching 144 MHz, it enters the domain of high-performance computing for embedded systems.

Package Types, Interface & Pin Configuration
Offered in the LQFP64 package, the M433SE8AE has dimensions of 7 mm x 7 mm x 1.4 mm with a lead pitch of 0.4 mm. It provides up to 52 I/O pins with interrupt capability, thereby ensuring substantial connectivity options for a wide range of applications.

Reliability & Lifespan
While specific reliability metrics and lifespan details are product-dependent and subject to operational conditions, Nuvoton microcontrollers are known for their robustness and durability under varying conditions.

Standards & Certifications
Adhering to the IEC60730-1 Class B standard, the M433SE8AE is backed by a certified IEC60730-1 Class B Software Test Library (STL). Such compliance underscores its safety and reliability in applications that demand high security and functional safety standards.

Application Cases & Reference Designs
In alignment with its application versatility, Nuvoton provides additional development resources including the NuMaker-M433SE evaluation board and the Nuvoton Nu-Link debugger. Support from third-party IDEs like Keil MDK, IAR EWARM, and GCC compilers through the Eclipse IDE amplifies its user-friendly nature. This backing substantially eases the integration process across various development settings, facilitating innovation and accelerated product development timelines.

In conclusion, the NuMicro® M433SE8AE microcontroller is positioned as a robust, versatile, and efficient choice for developers looking to push the boundaries in IoT, industrial, and consumer markets. Its rich feature set, coupled with dedicated support for development, makes it an attractive option for a plethora of applications requiring high performance and low power consumption characteristics.

Packaging *

Sample price USD 0.14000 for first 5 pieces

In Stock: 245

MOQ: 1 / MPQ: 1

Total USD 1.36
QuantityUnit Price
1USD 1.36000
1,000USD 1.23000
2,000USD 1.19000
5,000 +Quote by quantity
