NuMaker-HMI-MA35H0-A2

NuMaker-MA35H0-A2

The NuMaker-HMI-MA35H0-A2 is an evaluation board for Nuvoton NuMicro® MA35H0 series microprocessors, and consists of two parts: a NuMaker- HMI-MA35H04F70 board and a NuMaker-TFT-LCD7 board with a Capacitive Touch Panel. The NuMaker-HMI-MA35H0-A2 board integrates core components to simplify the system design, based on MA35H04F764C (LQFP216 package, and stacking a 128 MB DDR), discrete power supply power solution, and one megabit Ethernet PHY. The NuMaker-HMI-MA35H0-A2 has rich peripherals such as 1 set of megabit Ethernet, USB2.0 high-speed host and device, 1 set of SD2.0 in Micro SD slot, 1 set of SD3.0 in SD slot, 1 set of CAN FD, SPI, I²C, UART, and 2 sets of RS-485/RS-232 serial communication ports for users to facilitate the evaluation in HMI and industrial control, home appliances, 2-wheel cluster, medical device, new energy applications, ML (Machine Learning) or your creative applications.

NuMaker-MA35H0-A2 Features

NuMaker-HMI-MA35H04F70 Board

- Main Chip: MA35H04F764C (LQFP216) MCP package with 128 MB DDR SDRAM

-Power:

-5V Powered by USB type C

-Battery header for RTC power

-Debug:

- UART0 debug port: USB Virtual COM (VCOM) port

- Debug port: SWJ (JTAG + SWD) connector

-Memory Devices

- An on-board Quad SPI NAND Flash device (512 MB)

- An on-board NAND Flash device (1 GB)

- MicroSD memory card (SD0, supports SD2.0)

- Standard-SD memory card (SD1,supports SD3.0)

- One power-on setting DIP-Switch for evaluation booting source selection

- One set of 10/100 Megabit Ethernet port: One Megabit Ethernet (RMII) PHY device, one transformer and one RJ45 port connector

- Two sets of high-speed USB ports: One Host/Device port and one Host port

- One audio codec with microphone input and speaker output

- Two sets of RS232/RS485 transceiver and DB9/header connector

- One set of CAN FD transceiver and header connector

- Three user key buttons

- Three user LEDs

- One 3-channel ADC header connector

- One LCM connector to connect with 7’’ 1024x600 LCD daughter board



NuMaker TFT-LCD7 Board

-One LCD FPC connector for a 7" 1024x600 TFT LCD with capacitive touch

-One capacitive touch FPC connector

-One connector to connect with NuMaker-HMI-MA35H04F70 board

side image

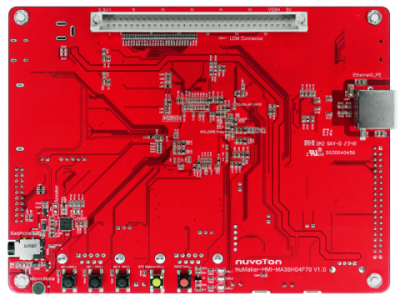

front image

 *Ordering Number: NK-HMA35H0A2
