nuvoton m2003xc1ae
SALE

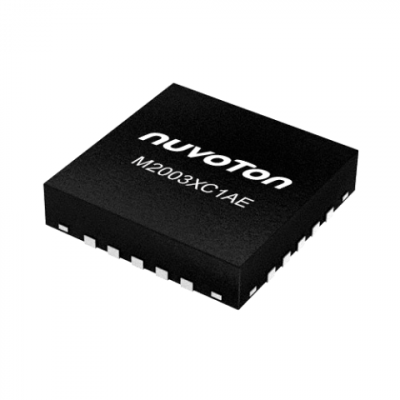

M2003XC1AE

Cortex M23 MCU 32 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M2003 Series
Core Processor
Cortex®-M23
Frequency
24MHz
PWM
6*16-bit
Number of I/O
18
Operating Voltage
2.4~5.5V
Memory Size
32KB
Operating Temperature
-40~105˚C
SRAM
4KB
ADC
8*12-bit
UART
2
Package
QFN20
Description



The NuMicro® M2003XC1AE 32-bit microcontroller is based on Arm® Cortex®-M23 core with 32-bit hardware multiplier/divider. It runs up to 24 MHz and features 32 Kbytes Flash, 4 Kbytes SRAM, 2.4V to 5.5V operating voltage, and -40°C to 105°C operating temperature.

Enhanced IP compared to NuMicro 1T 8051 series

The M2003XC1AE provides plenty of peripherals including 4 sets of 32-bit Timers, Watchdog Timers, 3-channel enhanced input capture, up to 2 sets of UART, 1 set of I²C and 1 set of Universal Serial Control Interface (USCI) that can be set as UART/SPI/I²C flexibly. Furthermore, all these communication interfaces have the individual FIFO to ensure the integrity of high-speed communication data. The M2003XC1AE also provides rich analog peripherals including 8 single-end analog input channels of 500 ksps 12-bit ADC and 6 channels of 16-bit PWM. The peripherals integrated into the M2003XC1AE offer enhanced functionality compared to the NuMicro 1T 8051 series products.

Pin Compatible with NuMicro 1T 8051 series

The M2003XC1AE with multiple function pins is fully compatible and seamlessly aligned with the Nuvoton N76E003AQ20, N76S003AQ20, MS51XB9AE, MG51XB9AE, and MG51XC9AE. (see the tables below)

Table 1 - Package vs. Product Series



Table 2 - Code-to-Code vs. Package Table



Key Features:

•Operating Characteristics

-Voltage range: 2.4V to 5.5V

-Temperature range: -40°C to +105°C

-EFT 4.4 kV

-ESD HBM 7 kV



•Core

-Arm Cortex-M23 core running up to 24 MHz

-Single-cycle hardware multiplier and 32-bit 17-cycle hardware divider


•Memory

-32 KB Flash

-4 KB SRAM

-4 KB Flash for user program loader (LDROM)

-1 KB security protection ROM (SPROM)

-ISP/ ICP/ IAP programming


•Clocks

-Internal 24 MHz HIRC oscillator ±4% within all temperature range, ±2% at 0°C ~ 85°C, ±1% at 25°C)

-Internal 10 kHz LIRC oscillator with variation ±50% within all temperature range



•Power management

-Supports Cap-less LDO

-Supports NPD Mode

-Supports BOD (4.4/ 3.7/ 2.7/ 2.2V falling edge)

-Normal run: 130 µA/MHz

-Idle: <40 µA/MHz



•Timers

-Four 32-bit timers

-One 24-bit count-down SysTick timer

-One Independent watchdog

-One window watchdog

-One 3-channel Enhanced input capture (ECAP)


•PWM

-6 channels of PWM with one 16-bit timer


•Analog

-8 channels of 12-bit 500 ksps SAR ADC



•Communication interfaces

-2 sets of UART interfaces with UART, RS-485 and IrDA mode

-1 set of I²C interface

-1 set of USCI interface supporting UART, SPI and I²C mode



•Up to 18 I/O


•96-bit Unique ID (UID)

•128-bit Unique Customer ID (UCID)



•Package

-QFN20 (3x3)



•Evaluation Board

-NuMaker-M2003FC



Packaging *

Sample price USD 0.05900 for first 5 pieces

In Stock: 485

MOQ: 1 / MPQ: 1

Total USD 0.50
Up to 16% Off
QuantityUnit Price
1(USD 0.59000)USD 0.50200
100(USD 0.45000)USD 0.38300
500(USD 0.38000)USD 0.32300
1,000(USD 0.34000)USD 0.28900
2,000(USD 0.33000)USD 0.28100
5,000 +Quote by quantity
