NuTiny-NM1240
EVB for NM1244D48 (nm1244 series)
Supplier:
Nuvoton
Certification:

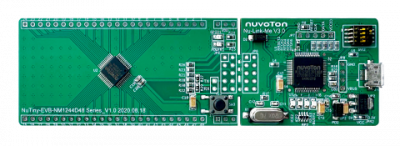

NuTiny-NM1240 (NuTiny-NM1244) development board consists of two parts, a NM series NM1244D48 platform and an on-board Nu-Link-Me debugger and programmer. The NuTiny-NM1240 (NuTiny-NM1244) allows users to quickly develop and easily program and debug application.
The NuTiny-NM1240 (NuTiny-NM1244) offers NM1244D48 full pins extension connectors. It is an easy-to-develop platform for user to expand the functionality and build the applications.
The Nu-Link-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. Additionally, the Nu-Link-Me provides virtual COM port (VCOM) function to print out messages on PC. Nu-Link-Me can be separated from NuTiny-NM1240 (NuTiny-NM1244), allowing user to use as a programming tool.
Ordering number:NT-NM1240
Support device: NM1244D48 (nm1244 series)
