nuvoton nk-nm18107l

NK-NM18107L

Low voltage motor development kit for NM18107Y

Supplier:

Nuvoton

Certification:

Specification
Attribute Value
Core Processor
Cortex M0
Description

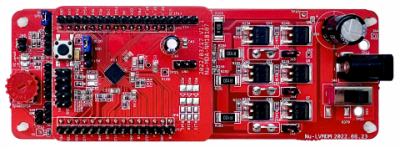

The NK-NM18107L is an evaluation board (EVB) featuring a Multi-Chip Package (MCP) that integrates an ARM Cortex-M0 MCU (NM1120) and a 40V N/N-based gate driver (NCT3612), along with external MOSFETs and variable resistors for controlling motor drive waveform and current phase. It supports the operation of three-phase brushless DC motors (BLDCMs) and permanent magnet synchronous motors (PMSMs), delivering a continuous drain current (IDSM) of 16.5A in 15V–24V DC rail or battery-powered applications.



The NK-NM18107L is designed for project evaluation, prototype development, and validation, allowing users to verify the functionality of motor application-based example code. For further development details, users can refer to the TRM and BSP of the NM1120 for NM18107 software development.



The NK-NM18107L includes the Nuvoton Low Voltage Motor Development Module (Nu-LVMDM) and the Nuvoton Motor Development Adapter (Nu-MDA-NM18107). The Nu-LVMDM serves as the power stage, while the Nu-MDA-NM18107 functions as the microcontroller stage. Note that the NK-NM18107L does not include a debugging tool, so users will need additional ICE debugging equipment, such as the Nu-Link-Me, for development.

Packaging *

In Stock: 1

MOQ: 1 / MPQ: 1

Total USD 63.00
QuantityUnit Price
1USD 63.00000
Technical Documentation
