M031GGC2AE

7/1-7/25 活動期間特價僅適用於特定生產時間的物料，此顆料的生產時間(Date code)為2022年，下單視同接受，如有疑問請下單前先聯繫客服。謝謝

Special pricing from July1st to 25th applies only to materials from specific production dates. The production date (date code) for this item is 2022. By placing an order, you agree to these terms. If you have any questions, please contact customer service before ordering. Thank you!

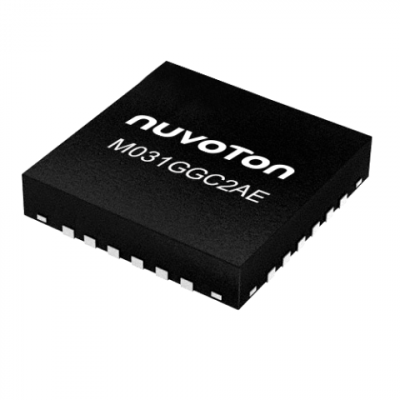

The Nuvoton NuMicro M031GGC2AE for Optical Transceiver supporting Pilot Tone Modulation is based on Arm Cortex-M0 core with 32-bit hardware multiplier/divider. It runs up to 72 MHz and features 32 Kbytes Flash memory, 8 Kbytes SRAM, 2.7V ~ 3.6V operating voltage, 5V I/O tolerant, and -40°C to +105°C operating temperature.

The M031GGC2AE provides plenty of peripherals including a hardware Manchester Codec, 6 sets of 32-bit timers, 1 set of UART, 1 set of SPI, 2 sets of I²C supporting 1 MHz Slave Mode, and 7 channels of PDMA.

The M031GGC2AE also provides rich analog peripherals including a built-in temperature sensor with ±1.6°C deviation from 0°C to 70°C and ±2°C deviation from -40°C to 105°C, internal voltage reference that can output 2.5V, 11 channels of 1.4 MSPS 12-bit SAR ADC and 4 sets of 12-bit DAC, 1 set of which supports Auto Data Generation function.

In order to fit the small form factor requirement of the optical module, the form factor of M031GGC2AE is QFN 24-pin (3x3 mm) with pin-compatible across all series to make the system design and change parts easily.

Key Features:

•Operating Characteristics
-Voltage range: 2.7V to 3.6V
-Temperature range: - 40 ℃ to 105 ℃
-EFT 4.4 kV
-ESD HBM 6 kV

•Core
-Arm® Cortex®-M0 running up to 72 MHz

•Memories
-32 KB Flash
-8 KB SRAM
-2 KB Flash for user program loader (LDROM)
-512 Bytes security protection ROM (SPROM)
-ISP/ICP/IAP programming

•Clocks
-Internal 48 MHz HIRC oscillator with variation ±2 % within all temperature range, variation ±0.7 % within 0°C to 70°C, ±1 % within -20°C to +105°C
-Internal 38.4 kHz LIRC oscillator
-One on-chip PLL Up to 72 MHz

•Power management
-Integrated with Power-on Reset, Brown-out Reset and Low Voltage Reset
-Normal run: 200 μA/ MHz
-Power-down: 200 μA
-Supports wake up from Power-down mode by: GPIO, WDT, TIMER, UART, I²C, SPI, WWDT

•Timers
-Six 32-bit timers
-One 24-bit SysTick timer
-One Independent watchdog
-One window watchdog timer

•PDMA
-7 channels that can be operated by – software trigger, Manchester, SPI, UART, I²C, ADC, DAC, PWM and Timer


•BPWM
-6 channels of BPWM with one 16-bit timer


•Cryptography Accelerator
-Supports CRC accelerator: CRC-CCITT, CRC-8, CRC-16, and CRC-32 polynomials
-Support configurable polynomials

•Analog
-11 channels of 12-bit 1.4 MSPS SAR ADC
-4 sets of 12-bit DAC
-Temperature sensor with ±1.6°C deviation within 0°C to 70°C and ±2°C deviation within all temperature range
-Internal reference voltage 2.048/2.5V

•Communication interfaces
-1 set of UART
-2 sets of 1 MHz I²C interfaces
-1 set of SPI interface (Master mode: 24 MHz, Slave mode: 16 MHz)


•Hardware Manchester Codec
-Manchester encoded/decoded data
-Configurable of Manchester format
-Configurable of Manchester Code Bit Rate
-Supports programmable 8/16/32-bit CRC polynomials
-Supports PDMA transfer


•Up to 19 I/O


•96-bit Unique ID ( UID )


•128-bit Unique Customer ID ( UCID )


•Package
-QFN24 (3x3)
