KE-KA49701A
Up to 17cell monitoring IC evaluation board
Supplier:
Nuvoton
Certification:

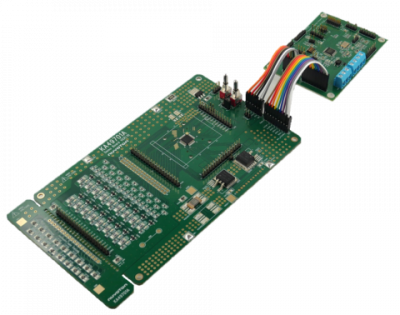

The KE-KA49701A is an evaluation board equipped with the KA49701A, capable of evaluating the voltage measurement of 4 to 17 battery cells, charging and discharging, cell balancing, fault detection, and more. The accompanying PC GUI software links with the MCU software to provide a high-level graphical user interface.
AFE Board:
Battery cell voltage measurement, Low side charging and discharging, cell balancing, fault detection, etc.
MCU Controller Board:
MCU circuit (including software debugging interface)
Power management and MCU reset circuit
BM IC and PC GUI interface circuit
LED status indicators
Software:
PC Graphical User Interface (GUI) Software
Other Accessories:
Board connection wires
TTL-232R-3V3 cable
