KE-KA49702A
Up to 17cell monitoring IC evaluation board
Supplier:
Nuvoton
Certification:

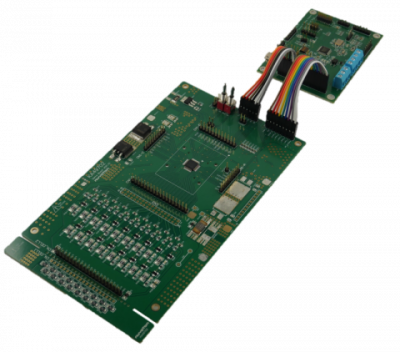

The KE-KA49702A is an evaluation board equipped with the KA49702A, capable of evaluating the voltage measurement of up to 17 battery cells, charging and discharging, cell balancing, fault detection, and more. The accompanying PC GUI software links with the MCU software to provide a high-level graphical user interface.
AFE Board:
Battery cell voltage measurement, High side charging and discharging, cell balancing, fault detection, etc.
MCU Controller Board:
MCU circuit (including software debugging interface)
Power management and MCU reset circuit
BM IC and PC GUI interface circuit
LED status indicators
Software:
PC Graphical User Interface (GUI) Software
Other Accessories:
Board connection wires
TTL-232R-3V3 cable
For more details and documents, please link to Nuvoton Official Website
