NuMaker-M2354KJB

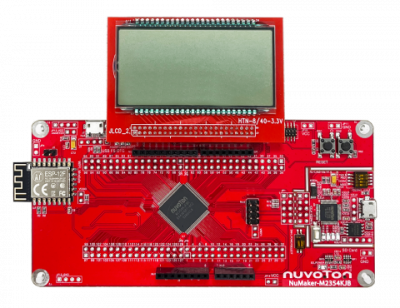

The NuMaker-M2354KJB is an evaluation board for Nuvoton NuMicro® M2354 microcontrollers. The NuMaker-M2354KJB consists of two parts, a M2354 target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M2354KJB is designed for secure evaluation, prototype development and validation with power consumption monitoring function.

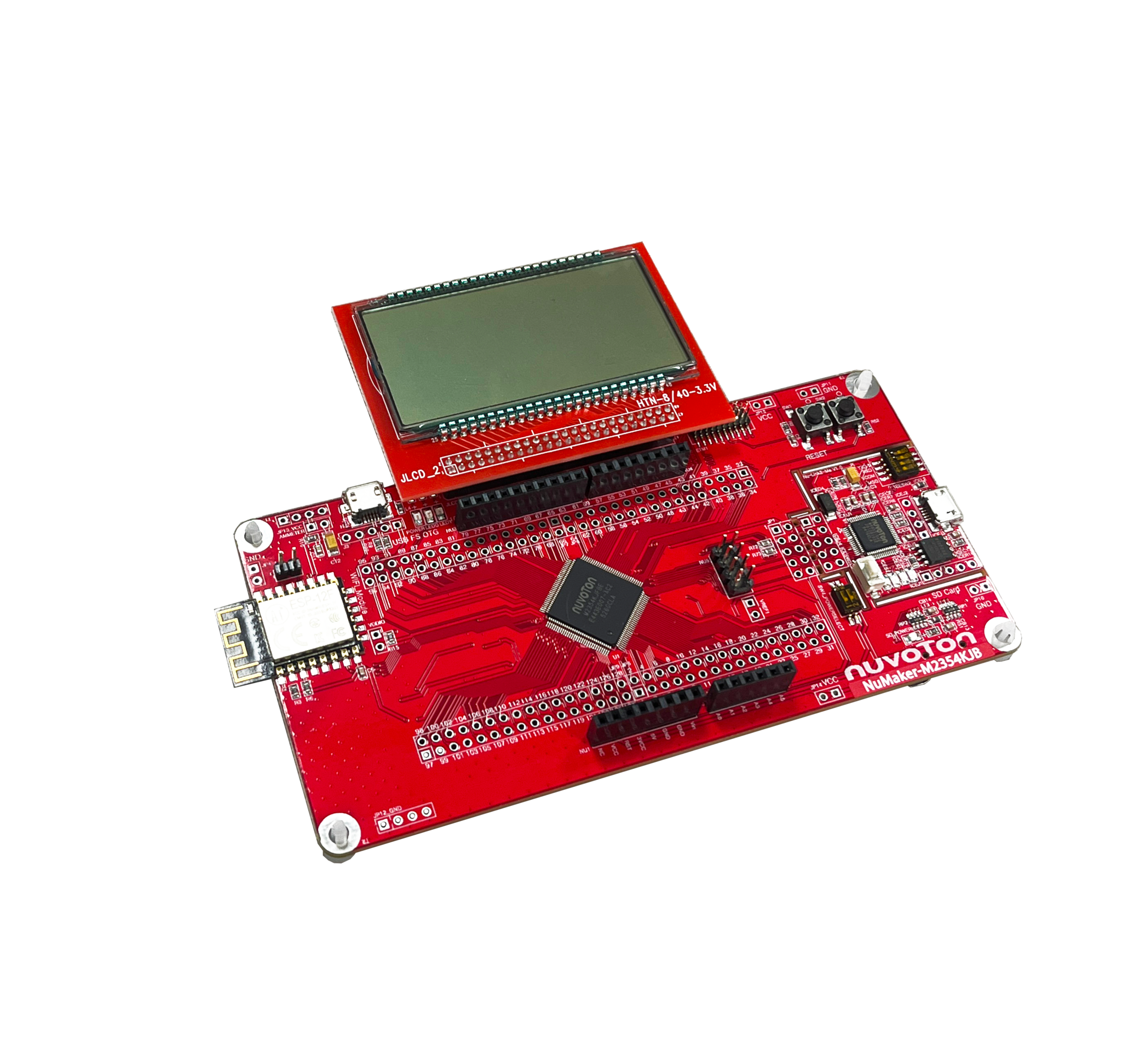

The M2354 target board is based on NuMicro M2354KJFBE. For the development flexibility, the M2354 target board provides the extension connectors of M2354KJFBE, the Arduino UNO compatible headers and is able to adopt multiple power supply by external power connectors. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation. The M2354 target board also has Wi-Fi connectivity on board and LCD display panel (COM/SEG) for quick development.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.

NuMaker-M2354KJB 由兩部分組成，採用 NuMicro® M2354KJFBE 微控制器的主控板，與 Nu-Link2-Me 除錯燒錄器。使用者只需使用此開發板就可以開始進行開發、燒錄並驗證應用程序。NuMaker-2354KJB 可作為安全專案評估、開發、驗證以及功耗監控的平台。

NuMaker-M2354KJB 平台帶有 NuMicro M2354KJFBE 微控制器以及完整的腳位擴展介面，提供相容於 Arduino UNO 的介面，方便搭配各式周邊設備或 Arduino 模組，該平台提供多種的電源供應設計，讓專案的開發更加靈活。NuMaker-M2354KJB 平台具備電流量測介面可以隨時監控功耗，協助專案開發與評估。NuMaker-M2354KJB 還帶有 Wi-Fi 模組以及支援 COM/SEG LCD，讓使用者能快速進行專案開發。

NuMaker-M2354KJB 的另一部分為 Nu-Link2-Me 除錯燒錄器。Nu-Link2-Me 可透過 SWD 介面對新唐微控制器進行在線 ICP 燒錄與除錯，也可以進行離線 ICP 燒錄，燒錄的狀態會顯示在狀態 LED 上。Nu-Link2-Me 也支援虛擬串口（VCOM）功能，可輸出訊息至終端機視窗。Nu-Link2-Me 還可以與開發板分離，成為獨立的批次生產燒錄器。

ordering no. NK-M2354KJB
