NuMaker-X-M55M1D

NuMaker-X-M55M1D  限量預購中，預計出貨時間為 10/1以後依照訂單順序出貨

The NuMaker-X-M55M1D is now available for pre-order. Shipping is expected to begin on October 1st, with orders fulfilled in the sequence they were received.

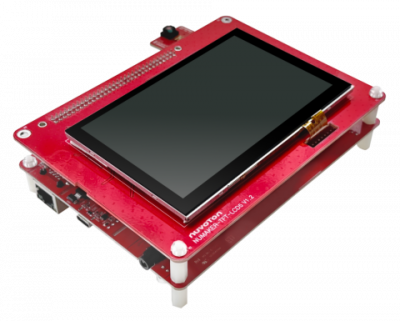

NuMaker-X-M55M1D 開發板

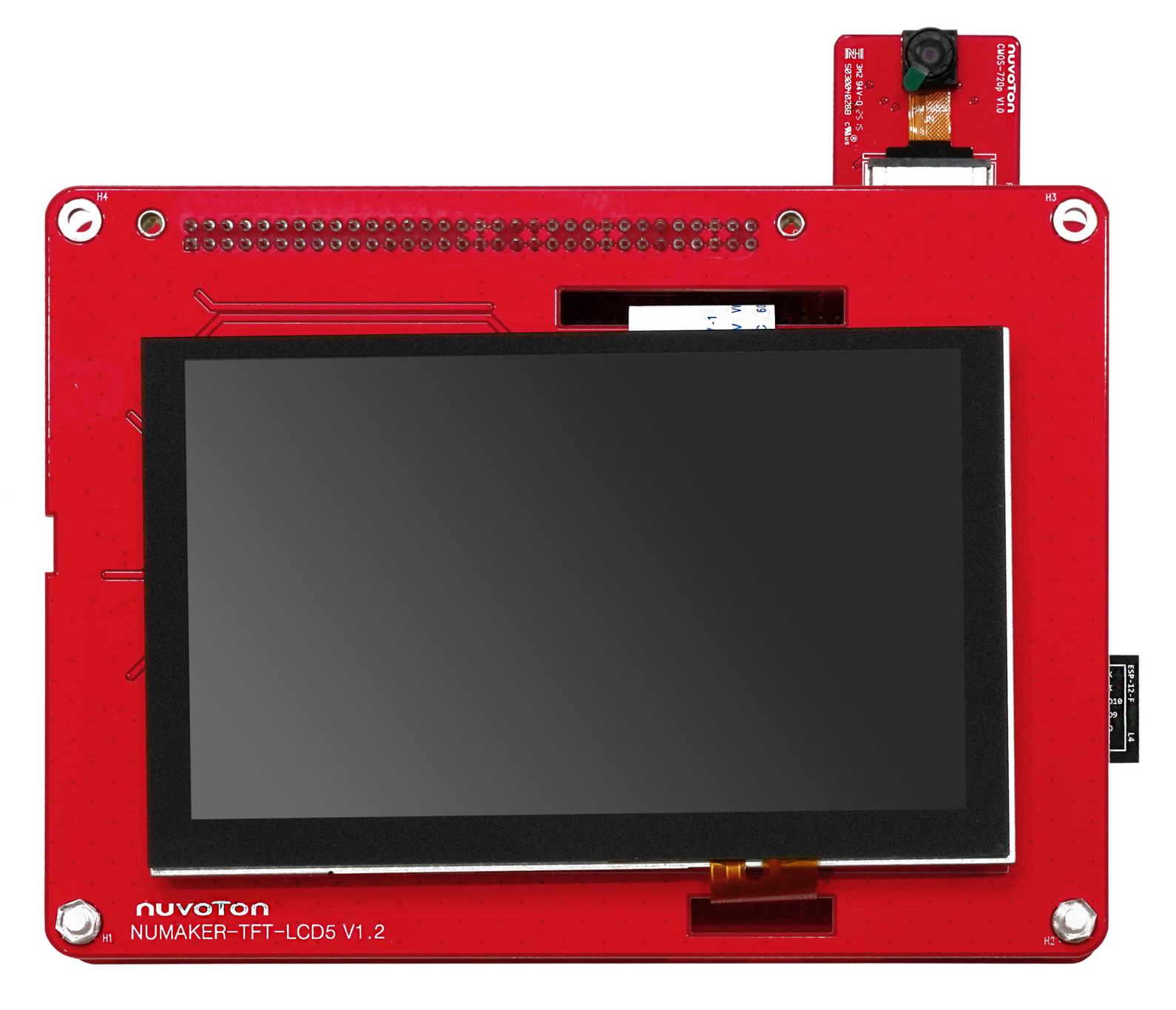

NuMaker-X-M55M1D 是一款建構於 NuMicro® M55M1 系列微控制器上的開發平台，由 NuMaker-X-M55M1 目標板、NuMaker-TFT-LCD5 V1.2 顯示模組及 CMOS-720P V1.0 攝影模組三個部分所組成。該開發板整合了關鍵系統元件與豐富的周邊介面，可加速系統設計、原型開發與機器學習應用的評估。

NuMaker-X-M55M1 目標板提供 Arduino UNO 相容接頭、多組 GPIO、I2C、UART、SPI 等常見通訊介面，亦支援 NuMaker-TFT-LCD 模組以開發人機互動應用。板載的 Nu-Link2-Me 除錯與燒錄器支援 SWD 介面，可進行線上與離線燒錄、晶片內部除錯，並透過虛擬 COM 埠（VCOM）將除錯訊息輸出至電腦。此外，內建狀態 LED 可即時顯示燒錄狀態，而 Nu-Link2-Me 可拆卸使用，作為獨立的量產燒錄工具。

M55M1 Series

M55M1 系列微控制器採用 Arm® Cortex®-M55 核心，最高運作頻率達 220 MHz，內建 Arm® Helium™ DSP 技術以增強數位訊號處理能力，並整合 Arm® Ethos™-U55 微型神經網路處理器，可於邊緣裝置上加速機器學習推論。該系列最高內建 2 MB Flash Memory 和 1.5 MB SRAM，並支援 HyperBus 介面以擴充外部記憶體。工作電壓範圍為 1.7V 至 3.6V，操作溫度範圍為 -40°C 至 +105°C，非常適合在嚴苛工業環境中使用。
本系列特別適用於高運算需求的嵌入式應用，包括即時訊號處理、進階機器學習、高效能控制系統、感測器融合、智慧工廠自動化、醫療裝置與通訊系統等領域

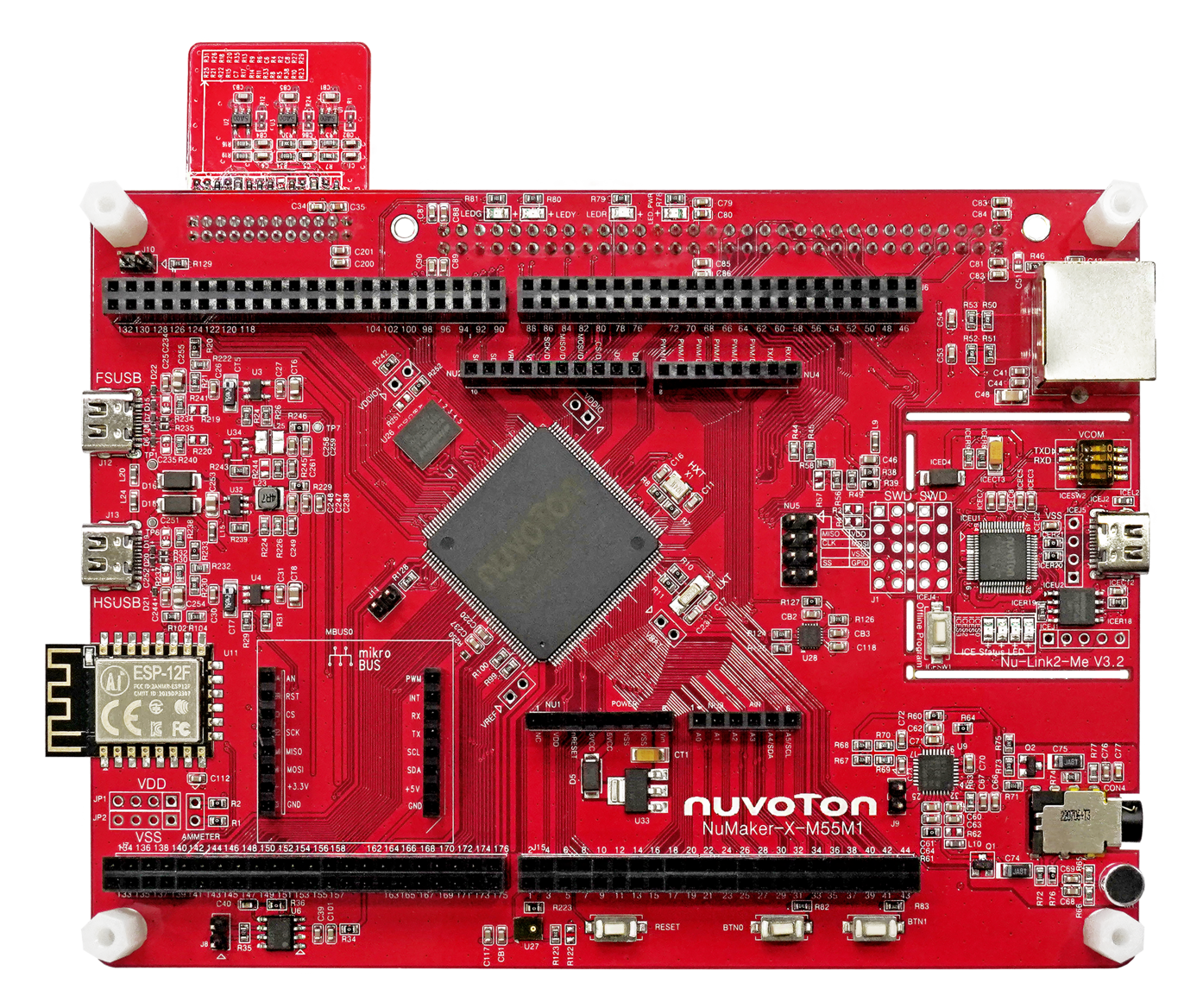

NuMaker-X-M55M1 Development Board

NuMaker-X-M55M1 is a development platform built on the NuMicro® M55M1 series microcontroller. This development board integrates essential system components and a wide range of peripheral interfaces, helping accelerate system design, prototyping, and the evaluation of machine learning applications.

The NuMaker-X-M55M1 target board provides Arduino UNO-compatible headers, multiple GPIOs, and common communication interfaces such as I2C, UART, and SPI. The onboard Nu-Link2-Me debugger and programmer supports the SWD interface, enabling both online and offline programming, as well as in-chip debugging. It also outputs debug messages to a PC via a virtual COM port (VCOM). In addition, the built-in status LED displays programming status in real time. The Nu-Link2-Me module is detachable and can be used independently as a production programming tool.
