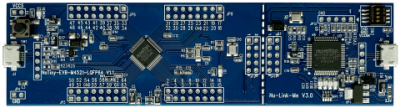

NuTiny-SDK-M4521S

NuTiny-SDK-M4521 is the specific development tool for NuMicro® M4521 series. Users can use NuTiny-SDK-M4521 to develop and verify the application program easily.
NuTiny-SDK-M4521 includes two portions. One is NuTiny-EVB-M4521 and the other is Nu-Link-Me. NuTiny-EVB-M4521 is the evaluation board and Nu-Link-Me is its Debug Adaptor. Thus, users do not need other additional ICE or debug equipments

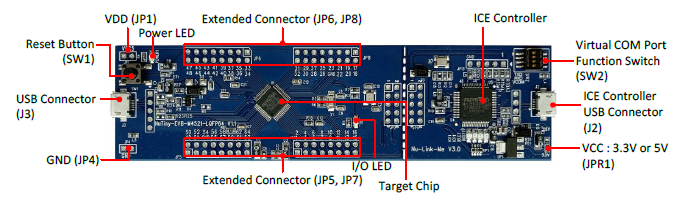

NuTiny-SDK-M4521 uses the M4521SE6AE as the target microcontroller. Figure 2-1 is NuTiny-
SDK-M4521 for M4521 series, the left portion is called NuTiny-EVB-M4521 and the right portion is
Debug Adaptor called Nu-Link-Me.
NuTiny-EVB-M4521 is similar to other development boards. Users can use it to develop and verify
applications to emulate the real behavior. The on board chip covers M4521 series features. The
NuTiny-EVB-M4521 can be a real system controller to design users’ target systems.
Nu-Link-Me is a Debug Adaptor.

The Nu-Link-Me Debug Adaptor connects your PC's USB port to
your target system (via Serial Wired Debug Port) and allows you to program and debug
embedded programs on the target hardware. The Nu-Link-Me V3.0 also supports VCOM function,
which gives users more flexibility when debug. To use Nu-Link-Me Debug adaptor with IAR or
Keil, please refer to “Nuvoton NuMicro® IAR ICE driver user manual “or Nuvoton NuMicro® Keil
ICE driver user manual” in detail. These two documents will be stored in the local hard disk when
the user installs each driver.

Ordering No. NT-M4521S

NuMicro® M4521 series
