NuMaker-M5531

M5531 Series

The M5531 series microcontrollers feature an Arm® Cortex®-M55 core running at up to 220 MHz, equipped with Arm® Helium™ DSP technology for enhanced digital signal processing capabilities. These MCUs integrate up to 2 MB of Flash Memory and 1.5 MB of SRAM, and support the HYPERBUS™ interface for external memory expansion. Operating at voltages from 1.7V to 3.6V and temperatures from -40°C to +105°C, the M5531 series is well-suited for demanding industrial environments.
They are ideal for compute-intensive embedded applications such as real-time signal processing, high-performance control systems, sensor fusion, smart factory automation, medical devices, and communication systems.

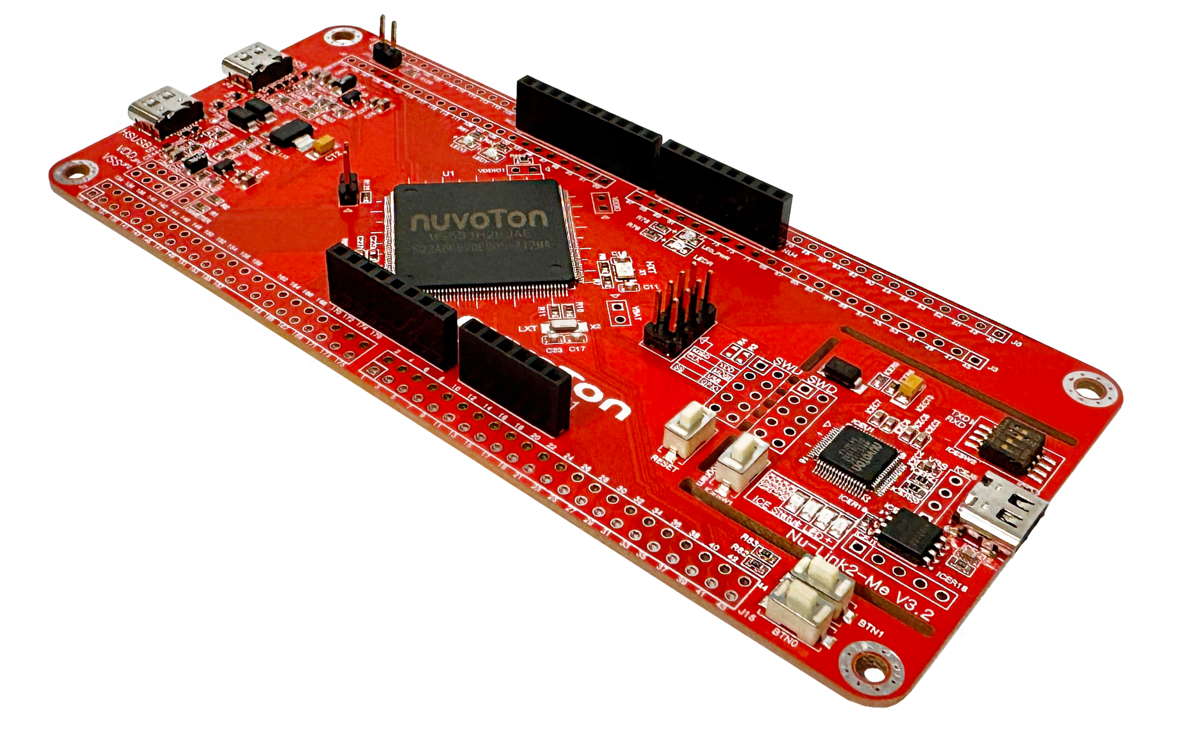

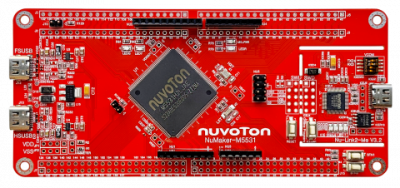

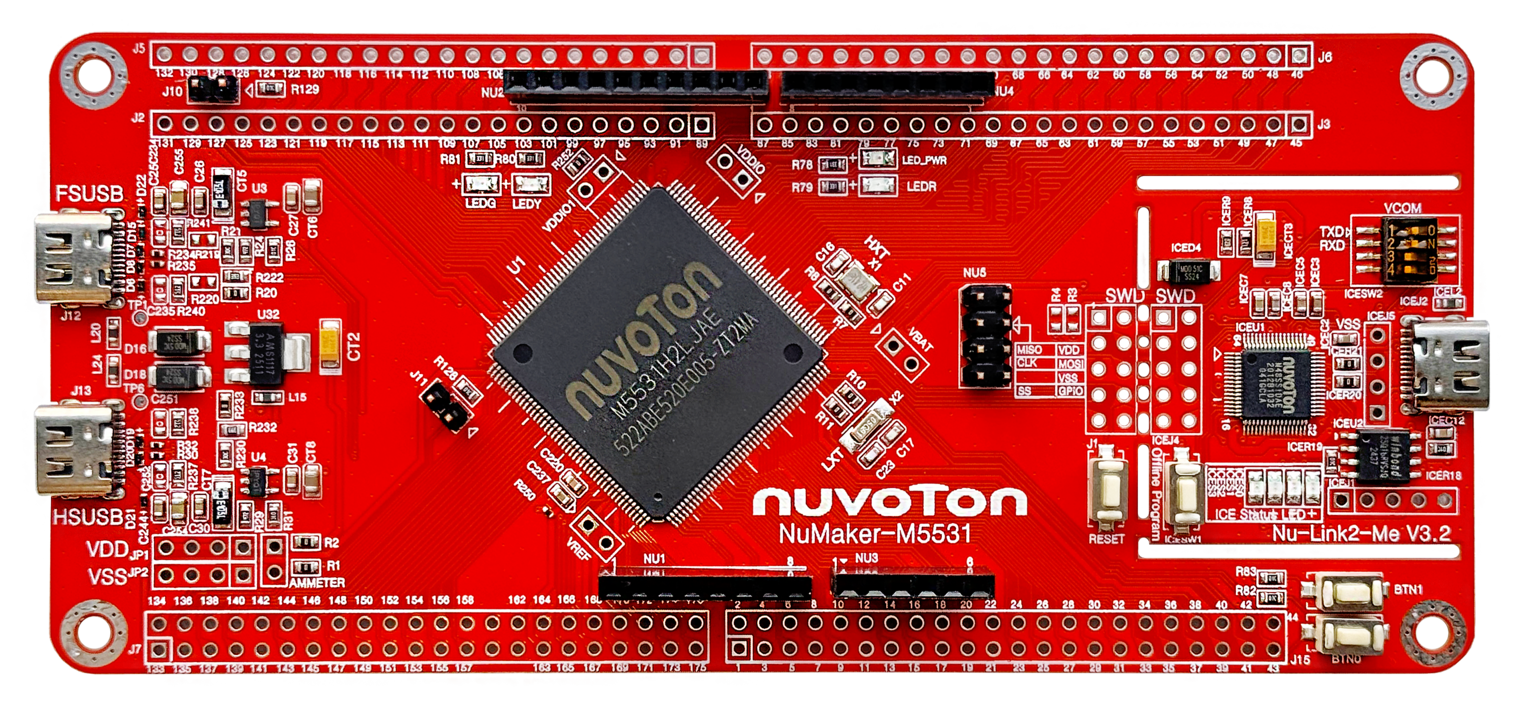

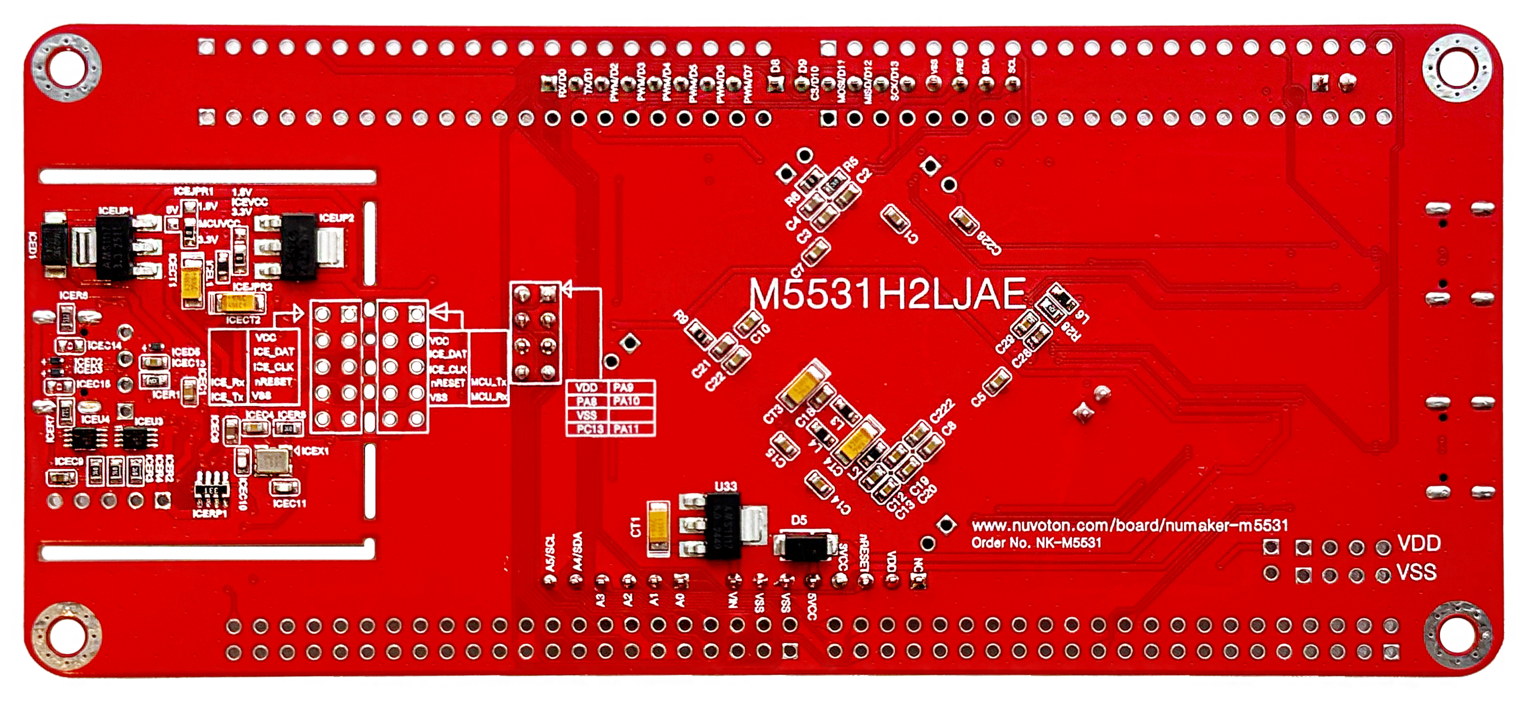

NuMaker-M5531 Development Board

NuMaker-M5531 is a development platform built on the NuMicro® M5531 series microcontroller. This development board integrates essential system components and a wide range of peripheral interfaces, helping accelerate system design and the evaluation of prototyping.

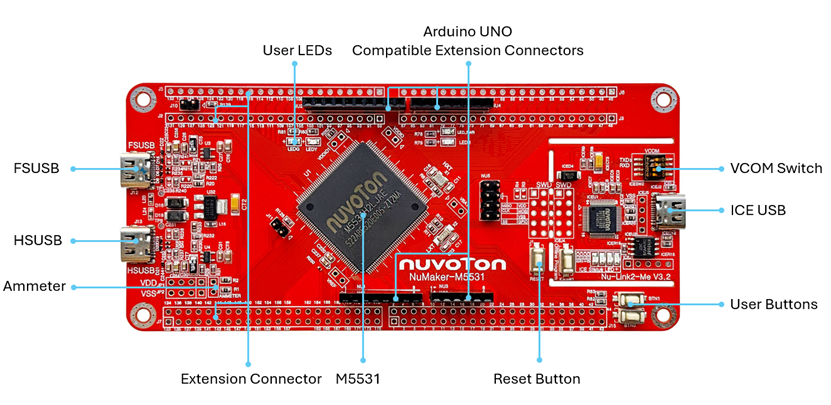

The NuMaker-M5531 target board provides Arduino UNO-compatible headers, multiple GPIOs, and common communication interfaces such as I2C, UART, and SPI. The onboard Nu-Link2-Me debugger and programmer supports the SWD interface, enabling both online and offline programming, as well as in-chip debugging. It also outputs debug messages to a PC via a virtual COM port (VCOM). In addition, the built-in status LED displays programming status in real time. The Nu-Link2-Me module is detachable and can be used independently as a production programming tool.

M5531 系列

M5531 系列微控制器採用 Arm® Cortex®-M55 核心，最高時脈達 220 MHz，內建 Arm® Helium™ DSP 技術以增強數位訊號處理能力。該系列最高內建 2 MB Flash Memory 和 1.5 MB SRAM，並支援 HYPERBUS™ 介面以擴充外部記憶體。工作電壓範圍為 1.7V 至 3.6V，操作溫度範圍為 -40°C 至 +105°C，非常適合在嚴苛工業環境中使用。
本系列特別適用於高運算需求的嵌入式應用，包括即時訊號處理、高效能控制系統、感測器融合、智慧工廠自動化、醫療裝置與通訊系統等領域。

NuMaker-M5531 開發板

NuMaker-M5531 是一款建構於 NuMicro® M5531 系列微控制器上的開發平台。此開發板整合了關鍵系統元件與豐富的周邊介面，可加速系統設計、原型開發的評估。

NuMaker-M5531 目標板提供 Arduino UNO 相容介面、多組 GPIO、I2C、UART、SPI 等常見通訊介面。板載的 Nu-Link2-Me 除錯燒錄器支援 SWD 介面，可進行線上與離線燒錄、晶片內部除錯，並透過虛擬 COM 埠（VCOM）將除錯訊息輸出至電腦。此外，內建狀態 LED 可即時顯示燒錄狀態，而 Nu-Link2-Me 可拆卸使用，作為獨立的量產燒錄工具。

Supported Devices:

M5531H2LJAE

M5531K2LJAE

M5531R2LJAE

Ordering No. NK-M5531
