NK-NM18402L

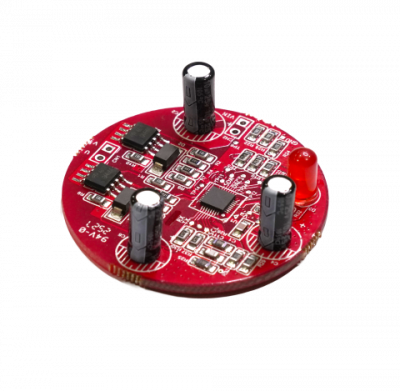

The NK-NM18402L is an evaluation board (EVB) featuring a Multi-Chip Package (MCP) that integrates an ARM Cortex-M0 MCU (NM1244) and a 30V P/N-based gate driver (NCT3620), along with external P/N MOSFETs for controlling motor drive waveform and current phase. It supports the operation of three-phase brushless DC motors (BLDCMs) and permanent magnet synchronous motors (PMSMs), delivering a continuous drain current (ID) of 6.3/-4.9A (P/N) in 12V DC rail or battery-powered applications.

The NK-NM18402L is designed for project evaluation, prototype development, and validation, allowing users to verify the functionality of motor application-based example code. For further development details, users can refer to the TRM and BSP of the NM1244 for NM18402 software development.

Note that the NK- NM18402L does not include a debugging tool, so users will need additional ICE debugging equipment, such as the Nu-Link-Me, for development.
