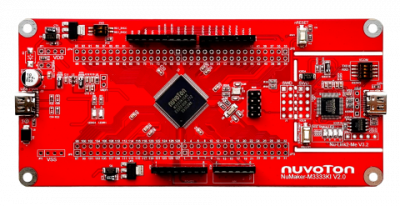

NuMaker-M3333KI

The NuMaker-M3333KI is an evaluation board for Nuvoton NuMicro® M3333 series microcontrollers. The NuMaker-M3333KI consists of two parts: an M3333KI target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M3333KI is designed for project evaluation, prototype development and validation with power consumption monitoring function.

The M3333KI target board is based on NuMicro® M3333KIGAE. For development flexibility, the M3333KI target board provides extension connectors, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. Furthermore, the Nuvoton-designed ammeter connector can measure power consumption instantly, which is essential for prototype evaluation.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.

■Supported Devices

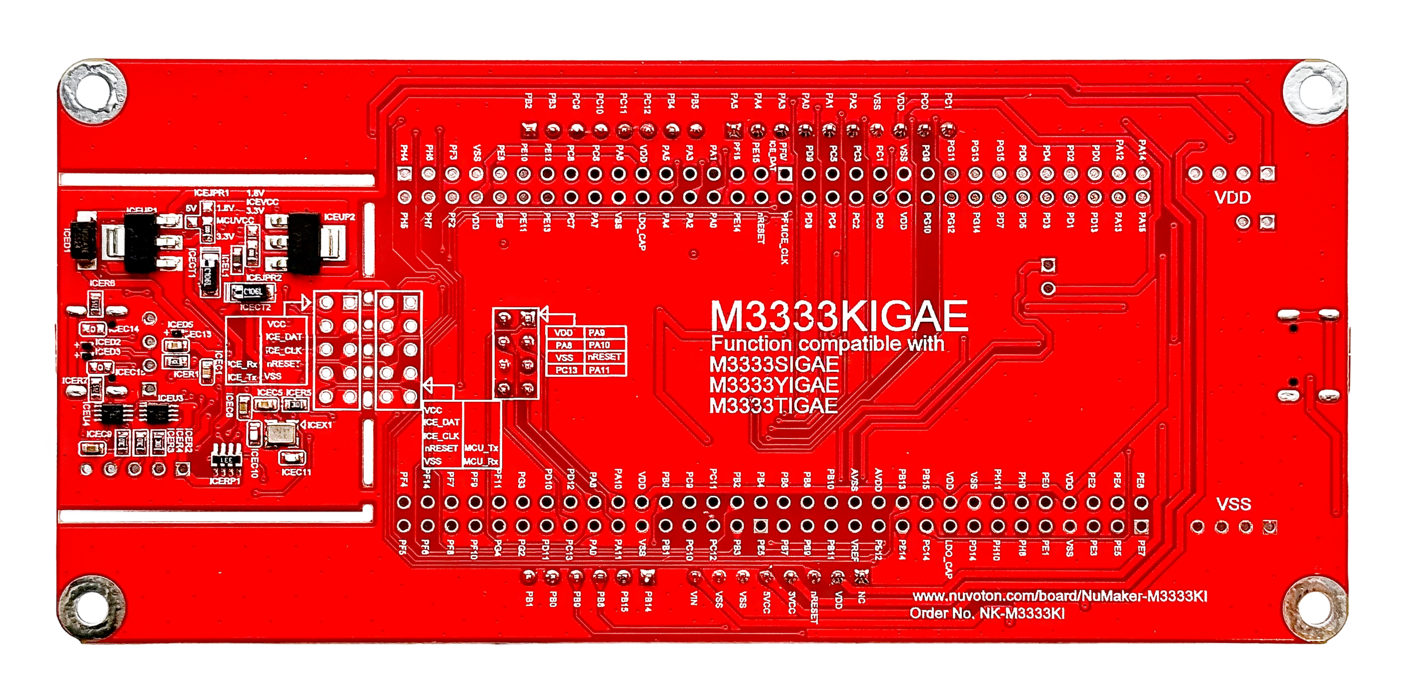

M3333SIGAE
M3333LIGAE
M3333YIGAE
M3333TIGAE

■ordering number: NK-M3333KI

■Quick start
