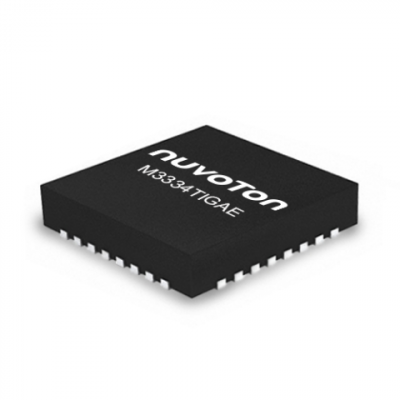

M3334TIGAE

The NuMicro® M3334TIGAE is a 32-bit microcontroller powered by the Arm® Cortex®-M33 core. It integrates TrustZone technology, a DSP instruction set, and a Floating-Point Unit (FPU). Designed for high-performance applications, it targets industrial control, smart factories, smart buildings, renewable energy, and consumer electronics. Operating at up to 180 MHz, the M3334TIGAE supports 1.7V to 3.6V operating voltage and -40°C to +105°C wide operating temperature. It offers QFN33 package and superior reliability, featuring high immunity with ESD HBM 4 kV and EFT 4.4 kV ratings.

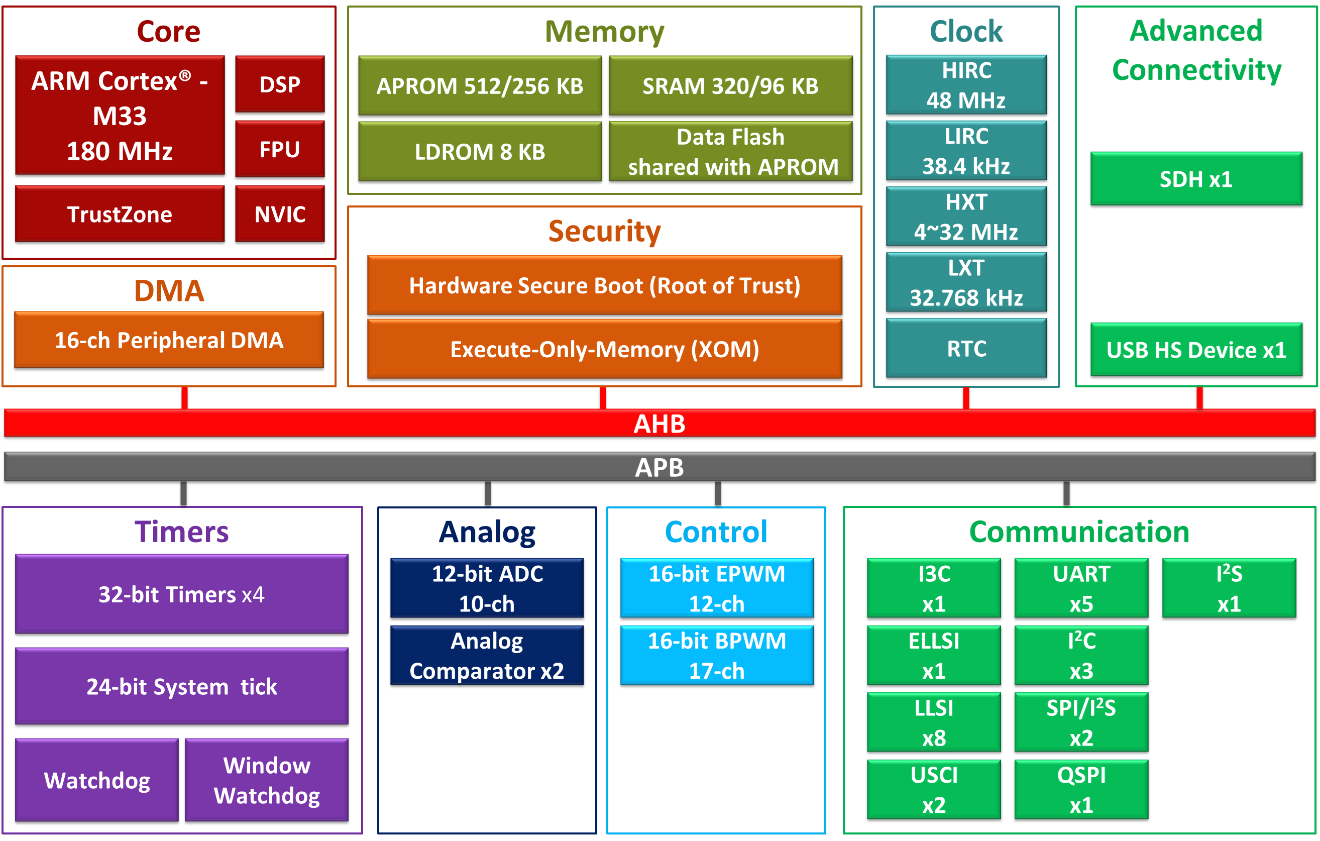

Key features:

Operating Characteristics

Voltage range: 1.7V to 3.6V
Temperature range: -40°C to +105°C
ESD HBM 4 kV
EFT 4.4 kV

Core

ARM® Cortex®-M33 core with TrustZone®, frequency up to 180 MHz
DSP instruction set
Single-precision floating point unit (FPU)
Memory Protection Unit (MPU) with eight memory regions

Memories

Up to 512 KB Flash memory, single bank
Flash memory with error correction code (ECC)
8 KB user-defined loader (LDROM)
Up to 320 KB SRAM including hardware parity check 64 KB

Clocks

4 to 32 MHz crystal oscillator (HXT)
32.768 kHz crystal oscillator (LXT) for RTC
Internal 48 MHz RC oscillator with ± 3% deviation at -40°C to +105°C
Internal 38.4 kHz RC oscillator with +/- 2.5% deviation
Internal PLL up to 180 MHz

Power management

Normal run: 91 μA/MHz at 25°C/3.3V (all peripherals disabled)
Normal power-down 2 (NPD2): 190 μA at 25°C/3.3V (all peripherals disabled)
Standby power-down (SPD) w/o SRAM retention: 4.93 μA at 25°C/3.3V (all peripherals disabled)
Deep power-down (DPD): 0.62 μA at 25°C/3.3V (all peripherals disabled)

Timers & Control Peripherals

Four 32-bit timers
Up to 12 enhanced PWM (EPWM) channels
Up to 17 basic PWM (BPWM) channels
One 24-bit SysTick timer
One Watchdog Timer (WDT)
One Window Watchdog Timer (WWDT)

Peripheral Direct Memory Access (PDMA)

16-channel Peripheral Direct Memory Access (PDMA)
Channel can be operated by software trigger, UART, SPI, EPWM, TIMER, ADC, ACMP, USB, USCI, QSPI, EINT, I²S and I²C

Analog Peripherals

One 12-bit SAR ADC with up to 10 channels and 4.2 Msps sampling rate
Two analog comparators
Built-in internal reference voltage including 1.6/2.0/2.5/3.0V

Communication Interfaces

One I3C interface
One Enhanced LED Light Strip Interface (ELLSI)
Up to 8 LED Light Strip Interfaces (LLSI)
Up to two Universal Serial Control Interfaces (USCI), configurable as UART, SPI, or I²C
Up to five UART interfaces with IrDA support (UART0 supports LIN mode)
Up to three I²C interfaces with SMBus/PMBus support (up to 3.4 Mbps)
Up to two SPI/I²S interfaces (SPI up to 90 MHz in Master mode)
One Quad-SPI interface (up to 90 MHz in Master mode)
One I²S interface
One Secure Digital Host Controller (SDH)

Advanced Connectivity

USB 2.0 high speed device controller with built-in transceiver

Security

Secure boot (root of trust, ROT)
Flash memory supporting up to four regions of Execute-Only-Memory (XOM)

Up to 21 I/O pins with interrupt capability

Development Platform Support

Arm Keil RVMDK, IAR EWARM IDE and VS Code
VS Code with support for Arm Compiler and GNU C Compiler
ICP (In Circuit Programmer) support for updating internal code via Nu-Link debugger
ISP (In System Programmer) support for updating code through UART, SPI, I²C, CAN FD, HSUSBD peripheral interfaces
NuTool-PinView for real time monitoring the status of all I/O pins
NuTool-PinConfigure for pin assignment, initial code generation and OrCAD/Protel part generation

96-bit Unique ID (UID)

128-bit Unique Customer ID (UCID)

Package (RoHS)

QFN 33, 4x4 mm

Development Environment:

Programming IDE: Keil MDK, IAR,VS Code
Software Package: Board Support Package (BSP), Sample Code
Development IDE: NuTool-PinView, NuTool-PinConfigure, NuTool-ClockConfigure, NuConsole
RTOS: FreeRTOS, Zephyr, RT-Thread
GUI Library: emWin, LVGL


Evaluation Board:

EVB NuMaker: NuMaker-M3334KI
Feature: Support USB HS, Expand Connector, and Arduino Uno Interface
