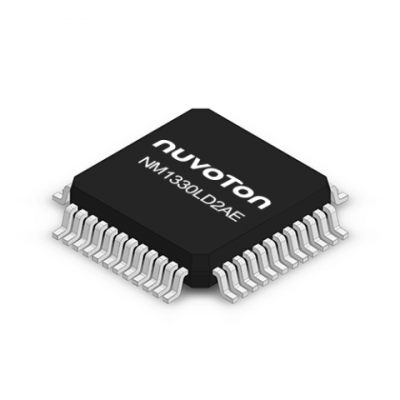

NM1330LD2AE

The NM1330LD2AE 32-bit microcontroller is embedded with ARM® Cortex®-M0 core for industrial control and applications which need rich communication interfaces.

The NM1330LD2AE can run up to 50 MHz and operate at 2.5V ~ 5.5V, -40℃ ~ 105℃, and thus can afford to support a variety of industrial control and applications which need high CPU performance. The NM1330LD2AE offers 64 KB flash, 4 KB Data Flash, 4 KB flash for the ISP, and 4 KB SRAM.

Many system level peripheral functions, such as I/O Port, EBI (External Bus Interface), Timer, UART, SPI, I2C, PWM, ADC, Watchdog Timer, Window Watchdog Timer, Analog Comparator and Brown-out Detector, have been incorporated into The NM1330LD2AE in order to reduce component count, board space and system cost. These useful functions make The NM1330LD2AE powerful for a wide range of applications.

Additionally, the NM1330LD2AE is equipped with ISP (In-System Programming) and ICP (In-Circuit Programming) functions, and IAP (In-Application Programming), which allow the user to update the program memory without removing the chip from the actual end product.
