NAU88U10YG

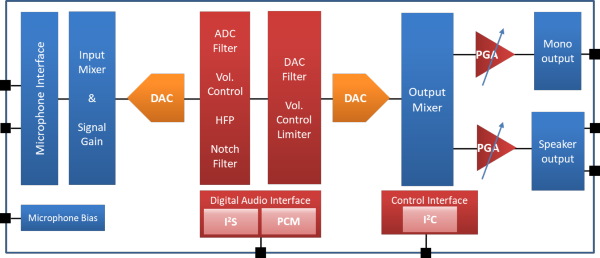

NAU88U10YG is a low power wideband Monophonic audio CODEC. It is suitable for a wide range of audio applications, including voice telephony.  Supported functions include a 5-band Graphic Equalizer, Automatic Level Control (ALC) with noise gate, PGA, standard I²S or PCM audio interface, optional PCM time slot assignment, and a full fractional-N on-chip PLL.

NAU88U10YG includes one differential microphone input, and multiple variable gain control stages in the audio paths.  Both a Mono headset/line-level output and a high power differential BTL speaker driver output is provided.

NAU88U10YG is specified for automotive AEC-Q100 qualification & TS16949 compliance.

Target Applications:

•Wired/Wireless telephony
•Security System
•Mobile Telephone Hands-free Kit
•Residential & Consumer Intercom

Key Features:

•ADC Feature

-SNR (A-weighted): 91dB @ 0dB gain

-THD+N: -79dB @ 0dB gain


•DAC Feature

-Integrated Headset Driver 40mW (16Ω / 3.3V)

-Integrated BTL Speaker Driver 1 W (8Ω / 5V)

-SNR (A-weighted): 93dB @ 0dB gain

-THD+N: -85dB @ 20mW, RL=32ohm



•Audio Input

-Digital Audio Interface: I2S / PCM Input

-Integrated programmable Microphone Amplifier

-Low Noise bias supply voltage for microphone

-Sample rates: 8~48kHz



•Advance/Control Feature

-5-band Graphic Equalizer

-Programmable ALC

-ADC Notch Filter

-Programmable High Pass Filter

-I2C Control Interface



•Operating Characteristics

-Voltage range(VDDD): 1.71V ~ 3.6V

-Voltage range(VDDA): 2.5V ~ 3.6V

-Temperature range: -40°C ~ 85°C (AEC-Q100 Grade 3 - Available)

 -Temperature range: -40°C ~ 105°C (AEC-Q100 Grade 2 - Qualifying)

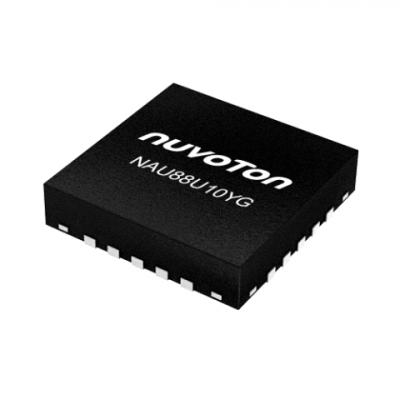

•Package
-QFN-20 (4x4mm)
