NuMaker-M3351KI

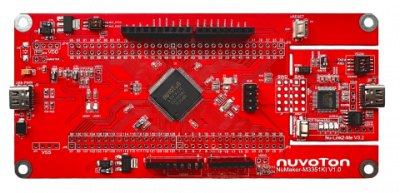

The NuMaker-M3351KI is an evaluation board for Nuvoton NuMicro® M3351 microcontrollers. The NuMaker-M3351KI consists of two parts: an M3351KI target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M3351KI is designed for project evaluation, prototype development and validation with power consumption monitoring function.

The M3351KI target board is based on NuMicro® M3351KICAE. For the development flexibility, the M3351KI target board provides the extension connectors, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.

NuMaker-M3351KI 是新唐 NuMicro® M3351 微控制器的開發板。NuMaker-M3351KI 由二部分組成：M3351KI 目標板與 Nu-Link2-Me 除錯燒錄器。NuMaker-M3351KI 可作為專案評估、開發、驗證以及功耗監控的平台。

M3351KI 目標板帶有 NuMicro® M3351KICAE 微控制器，並提供 M3351KICAE 的腳位擴展介面，與相容於 Arduino UNO 的介面，方便搭配各式周邊設備或 Arduino 模組，並有多種的電源供應設計，讓專案的開發更加靈活。M3351KI目標板還帶有電流量測介面可以隨時監控功耗，協助專案開發與評估。

NuMaker-M3351KI 的另一部分為 Nu-Link2-Me 除錯燒錄器。Nu-Link2-Me 可透過 SWD 介面對新唐微控制器進行在線 ICP 燒錄與除錯，也可以進行離線 ICP 燒錄，燒錄的狀態會顯示在狀態 LED 上。Nu-Link2-Me 也支援虛擬串口（VCOM）功能，可輸出訊息至終端機視窗。Nu-Link2-Me 還可以與開發板分離，成為獨立的批次生產燒錄器。

Resources

Part No.NuMaker-M3351KI
Ordering No.NK-M3351KI
