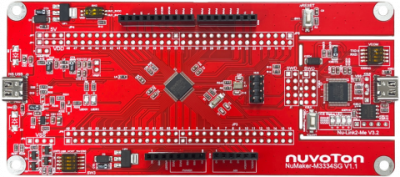

NuMaker-M3334SG

The NuMaker-M3334SG is an evaluation board for Nuvoton NuMicro® M3334SG,M3334LG, M3334YG and M3334TG microcontrollers. The NuMaker-M3334SG consists of two parts: an Mtarget board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M3334SG is designed for project evaluation, prototype development and validation with power consumption monitoring function.

The M3334SG target board is based on NuMicro M3334SGAAE. For the development flexibility, the M3334SG target board provides the extension connectors, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.

■Ordering Number: NK-M3334SG

■Supported Devices

M3334SGAAE
M3334LGAAE
M3334YGAAE
M3334TGAAE

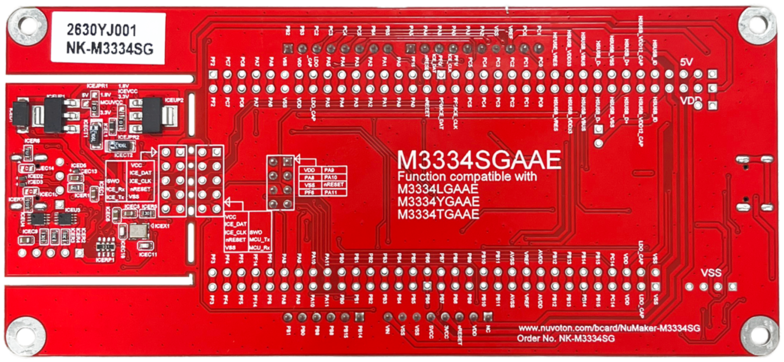

Back

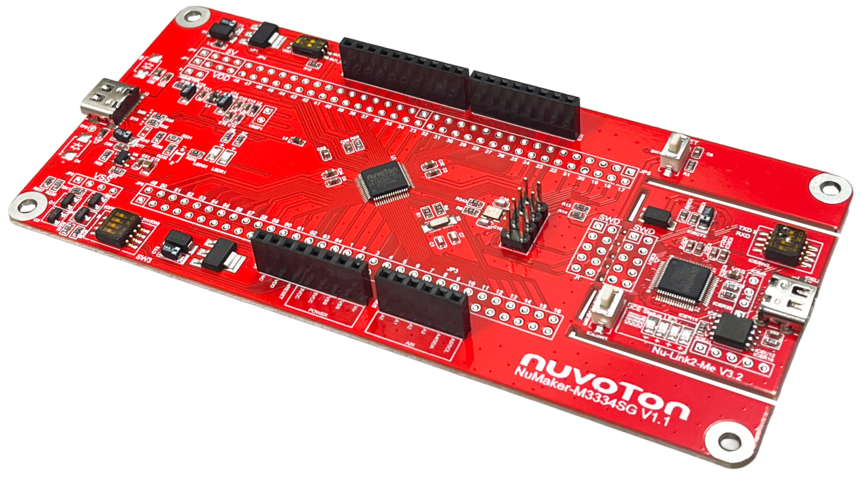

Side
