winbond w25x05clsnig

W25X05CLSNIG

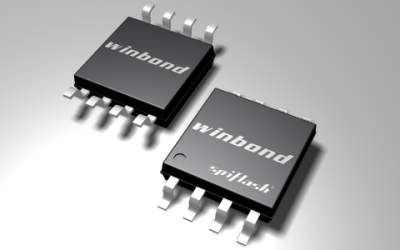

512Kb Serial NOR Flash 104MHz SOP8

Supplier:

Winbond

Certification:

certcert
Specification
Attribute Value
Density
512Kb
Frequency
104MHz
Temperature
-40~+85˚C
Dimension
150mil
Voltage
2.3 ~ 3.6V
Package
SOP - 8
Description

Introduction:

Winbond's W25X05CL belongs to the family of W25X, a 512K-bit Serial NOR Flash memory device providing efficient storage solutions for systems with limited space, pins, and power. The W25X series provides flexibility and performance that far exceeds typical Serial Flash devices, making them ideal for code download applications. Moreover, they're capable of storing different types of data including voice and text.

Function & Applications:

The W25X05CL's architecture, with its 256 programmable pages of 256-bytes each, supports various applications that require data and parameter storage, and are especially suited for text and data storage because of their 4KB sectors. The device features units of erasable memory - 16 erasable sectors, 2 erasable 32KB blocks, and 1 erasable 64KB block. It has a noteworthy amount of flexibility due to its standard Serial Peripheral Interface and high-performance dual I/O SPI, making it suitable for data transfer at rates comparable to those of 8 and 16-bit Parallel Flash memories.

Performance Parameters:

The W25X05CL operates on a single power supply range of 2.3V to 3.6V with a consumption rate as low as 1mA when active and 1µA when power-down. It supports SPI clock frequencies up to 104MHz, allowing an equivalent clock rate of 208MHz in running the Fast Read Dual Output instruction. It also features an efficient Continuous Read Mode for superior memory access and write protect functionalities allowing refined control features.

Package Types, Interface & Pin Configuration:

The device is available in a selection of space-saving packages: the 8-pin SOIC and VSOP 150-mil, and the 8-pad USON 2x3-mm. It communicates using standard SPI and dual output SPI, specifically consisting of pins CLK, /CS, DI, DO, /WP, /HOLD for standard SPI, and CLK, /CS, IO0, IO1, /WP, /HOLD for Dual SPI.

Reliability & Lifespan:

With a lifespan that includes more than 100,000 erase/write cycles and over 20 years of data retention, the W25X05CL is a robust choice when durability and longevity are necessary. Its wide operating temperature range of -40°C to +85°C adds environmental adaptability to its reliability profile.

Standards & Certifications:

The W25X05CL follows JEDEC standard manufacturer protocols and device identification and features a 64-bit Unique Serial Number to ensure authenticity and maintain standards.

Application Cases & Reference Designs:

Industries in various sectors including but not limited to automotive, technology, and electronics implement the W25X05CL due to its wide range of functionality. It's central to applications that require secure, efficient storage solutions like real-time 2D/3D image rendering, advanced driver-assist systems, and central console functionalities.

Features

Product Feature 1

Single/Dual SPI
UID
2.3V to 3.6V Vcc Range, Space Efficient Packaging
Flexible Architecture with 4KB Sectors
1mA Active Read Current, <1mA Power Down Current

Packaging *

In Stock: 2,005

MOQ: 1 / MPQ: 1

Total USD 0.28
QuantityUnit Price
1USD 0.28000
100USD 0.27000
1,000USD 0.25000
20,001 +Quote by quantity
