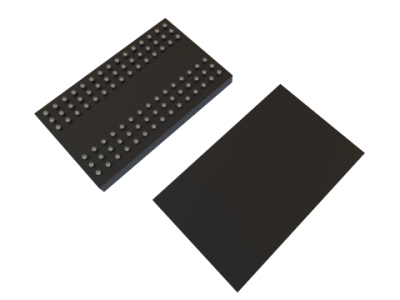

W631GU6NB-11
1Gb DDR3 SDRAM 667 / 800 / 933 / 1066 MHz VFBGA96
Supplier:
Winbond
Certification:
Specification
Attribute Value
Package
96-VFBGA
Interface Type
DDR3 SDRAM
Density
1Gb
Frequency
667 / 800 / 933 / 1066 MHz
Temperature
0~95˚C
Dimension
7.5X13mm2
Voltage
1.283~1.45V
I/O
16BIT
Description
The W631GU6NB is a 1G bits DDR3L SDRAM and speed involving -09, 09I, 09J, -11, 11I, 11J, -12, 12I, 12J, -15, 15I and 15J
Features
Product Features 1
Backward compatible to VDD, VDDQ = 1.5V ± 0.075V
Double Data Rate architecture: two data transfers per clock cycle
Eight internal banks for concurrent operation
8 bit prefetch architecture
CAS Latency: 5, 6, 7, 8, 9, 10, 11, 13 and 14
Burst Length 8(BL8) and burst chop 4 (BC4) modes: fixed via mode register (MRS) or selectable On-The-Fly (OTF)
Programmable read burst ordering: interleaved or nibble sequential
Bi-directional, differential data strobes (DQS and /DQS# ) are transmitted / received with data
Edge-aligned with Read data and center-aligned with Write data
DLL aligns DQ and DQS transitions with clock
Differential clock inputs (CK and /CK# )
Commands entered on each positive CK edge, data and data mask are referenced to both edges of a differential data strobe pair (double data rate)
Posted CAS with programmable additive latency (AL = 0, CL - 1 and CL - 2) for improved command, address and data bus efficiency
Read Latency = Additive Latency plus CAS Latency (RL = AL + CL)
Auto-precharge operation for read and write bursts
Refresh, Self-Refresh, Auto Self-refresh (ASR) and Partial array self refresh (PASR)
Precharged Power Down and Active Power Down
Data masks (DM) for write data
Programmable CAS Write Latency (CWL) per operating frequency
Write Latency WL = AL + CWL
Multi purpose register (MPR) for readout a predefined system timing calibration bit sequence
System level timing calibration support via write leveling and MPR read pattern
ZQ Calibration for output driver and ODT using external reference resistor to ground
Asynchronous RESET# pin for Power-up initialization sequence and reset function
Programmable on-die termination (ODT) for data, data mask and differential strobe pairs
Dynamic ODT mode for improved signal integrity and preselectable termination impedances during writes
1K Byte page size
Double Data Rate architecture: two data transfers per clock cycle
Eight internal banks for concurrent operation
8 bit prefetch architecture
CAS Latency: 5, 6, 7, 8, 9, 10, 11, 13 and 14
Burst Length 8(BL8) and burst chop 4 (BC4) modes: fixed via mode register (MRS) or selectable On-The-Fly (OTF)
Programmable read burst ordering: interleaved or nibble sequential
Bi-directional, differential data strobes (DQS and /DQS# ) are transmitted / received with data
Edge-aligned with Read data and center-aligned with Write data
DLL aligns DQ and DQS transitions with clock
Differential clock inputs (CK and /CK# )
Commands entered on each positive CK edge, data and data mask are referenced to both edges of a differential data strobe pair (double data rate)
Posted CAS with programmable additive latency (AL = 0, CL - 1 and CL - 2) for improved command, address and data bus efficiency
Read Latency = Additive Latency plus CAS Latency (RL = AL + CL)
Auto-precharge operation for read and write bursts
Refresh, Self-Refresh, Auto Self-refresh (ASR) and Partial array self refresh (PASR)
Precharged Power Down and Active Power Down
Data masks (DM) for write data
Programmable CAS Write Latency (CWL) per operating frequency
Write Latency WL = AL + CWL
Multi purpose register (MPR) for readout a predefined system timing calibration bit sequence
System level timing calibration support via write leveling and MPR read pattern
ZQ Calibration for output driver and ODT using external reference resistor to ground
Asynchronous RESET# pin for Power-up initialization sequence and reset function
Programmable on-die termination (ODT) for data, data mask and differential strobe pairs
Dynamic ODT mode for improved signal integrity and preselectable termination impedances during writes
1K Byte page size
