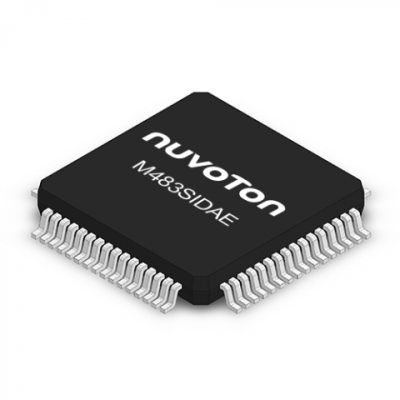

nuvoton m483sidae

M483SIDAE

Cortex M4 MCU 512 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
M483 CAN Series
Core Processor
Cortex M4
Frequency
192MHz
PWM
24
Number of I/O
118
Operating Voltage
1.8~3.6V
Memory Size
512KB
Operating Temperature
-40~+105˚C
SRAM
160KB
PDMA
16
DAC
2*12-bit
ADC
16*12-bit
UART
6
SPI
5
CAN
2
USB OTG
HS
Package
LQFP64(7x7mm)
Description

Introduction
The NuMicro® M483SIDAE microcontroller, part of the M483 CAN Series developed by Nuvoton, is a state-of-the-art device that delivers a range of robust features suited for a variety of applications. The microcontroller leverages the processing power of the Arm® Cortex®-M4F core with DSP extension, enabling it to operate at frequencies up to 192 MHz. It achieves dynamic low power consumption of 175 µA/MHz, making it an energy-efficient option for designers.

Function & Applications
The M483SIDAE is designed for IoT and Industrial Control applications, among others. Its advanced core and substantial memory allow for complex program execution and real-time processing, essential for modern embedded systems. With OTA firmware upgrade support, systems using this microcontroller can be updated wirelessly to ensure they remain current with the latest features and security updates.

Performance Parameters
At its heart, the M483SIDAE boasts a Cortex®-M4F core that reaches speeds of up to 192 MHz while delivering 1.25 DMIPS per MHz. The microcontroller comes with robust memory features including 512 KB of zero-wait state Flash, 160 KB SRAM with a 32 KB cache, 4 KB Secure Protection ROM, and 2 KB One-Time-Programmable ROM. The device is also equipped with a rich set of peripherals and interfaces including PWM timers, SAR ADC, DACs, comparators, operational amplifiers, and various communication interfaces like UART, ISO-7816, I²C, SPI, and CAN 2.0B.

Package Types, Interface & Pin Configuration
The M483SIDAE is available in an LQFP64 package, which provides a combination of critical signal, power, and ground pins to interface with the external components and printed circuit boards. This pin configuration supports the aforementioned interfaces and allows for flexible connection schemes within embedded systems.

Reliability & Lifespan
Engineered for reliability, the M483SIDAE operates over a wide temperature range of -40 °C to +105 °C, catering to industrial requirements. Reliability over its operational lifespan is further ensured by the onboard Secure Boot, which guarantees secure firmware execution, and dedicated memory spaces like Secure Protection ROM and One-Time Programmable ROM for security-related programming.

Standards & Certifications
Nuvoton typically adheres to international standards for microcontroller safety, electromagnetic compatibility, and quality, although specific certifications applicable to the M483SIDAE are not detailed within the provided text. Users should reference the manufacturer's documentation for details on compliance with industry standards such as ISO, IEC, or specific regional electronics standards.

Application Cases & Reference Designs
Given its multitude of interfaces and support for a variety of communication protocols, the M483SIDAE can be easily integrated into IoT devices, industrial automation systems, motor controllers, and a range of other applications that require robust control and connectivity features. While not explicitly mentioned, Nuvoton often provides reference designs and application notes to help engineers incorporate the M483SIDAE into their designs efficiently.

In conclusion, the NuMicro® M483SIDAE offers a rich blend of processing power, memory capabilities, and comprehensive interfacing options designed to meet the strenuous demands of modern embedded applications. Its reliability and support for a wide range of operating conditions make it an extremely versatile choice for a broad spectrum of products.

Packaging *

In Stock: 400

MOQ: 1 / MPQ: 1

Total USD 2.94
QuantityUnit Price
1USD 2.94000
1,000USD 2.67000
2,000USD 2.58000
5,000 +Quote by quantity
